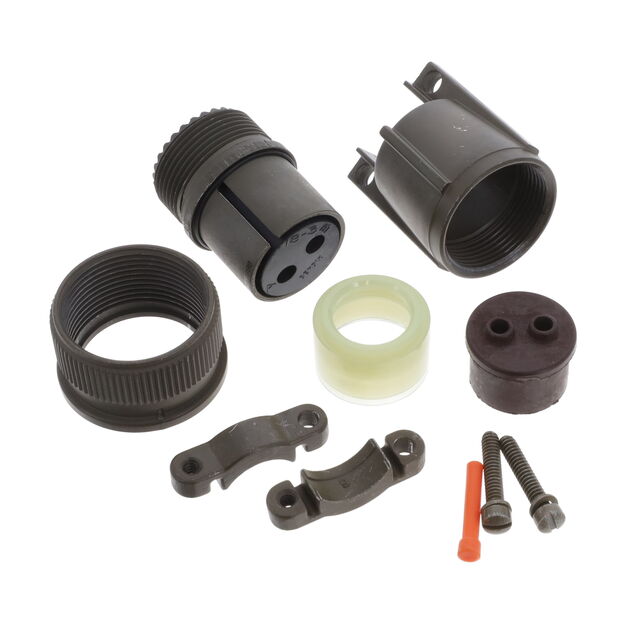

MS3106F18-3S

Active

Amphenol Aerospace Operations

MIL-5015 MS/AC THREADED PLUG

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

MIL-5015 MS/AC THREADED PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F18-3S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	18-3
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

Part	Features	Grade	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)	Ingress Protection	Orientation	Insert Material	Primary Material	Number of Positions	Shielding	Mounting Type	Connector Type	Contact Material	Shell Finish	Contact Finish - Mating	Color	Shell Material	Applications	Voltage Rating
Amphenol Aerospace Operations MS3106F18-3S	Backshell Cable Clamp Coupling Nut	Military	MIL-DTL-5015	-55 °C	125 °C	18-3	23 A	Environment Resistant	N	Neoprene	Metal	2	Unshielded	Free Hanging (In-Line)	Female Sockets Plug	Copper Alloy	Olive Drab Chromate over Cadmium	Silver	Olive Drab	Aluminum Alloy	Marine Military	900 VAC 1250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
