1-84953-9

Active

TE Connectivity AMP Connectors

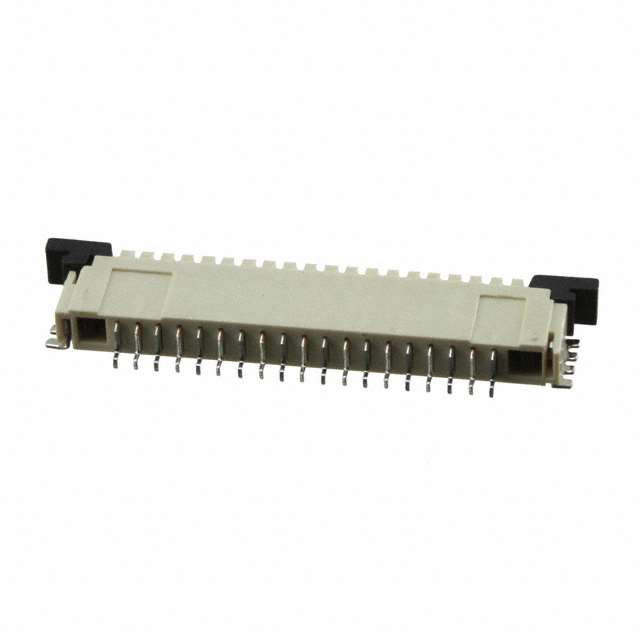

CONN FPC TOP 19POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-84953-9

Active

TE Connectivity AMP Connectors

CONN FPC TOP 19POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.38
		10	$ 1.29
		25	$ 1.24
		50	$ 1.23
		100	$ 1.11
		250	$ 1.08
		500	$ 0.98
	Digi-Reel®	1	$ 1.38
		10	$ 1.29
		25	$ 1.24
		50	$ 1.23
		100	$ 1.11
		250	$ 1.08
		500	$ 0.98
	Tape & Reel (TR)	1200	$ 1.19
		3600	$ 1.10
		6000	$ 1.06

Description

General part information

84953 Series

19 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

Datasheet

Specification	1-84953-9	84953 Series

Actuator Color	Black	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Straight	Straight
Connector/Contact Type	Contacts, Top	Contacts, Top
Contact Finish	Tin	Tin
Contact Finish Thickness	2 µm	2 µm
Contact Finish Thickness	78.7 µin	78.7 µin
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Zero Insertion Force (ZIF), Solder Retention	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC	FPC
Height Above Board	0.101 "	0.101 "
Height Above Board	2.56 mm	2.56 mm
Housing Color	Natural	Natural
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Locking Feature	Slide Lock	Slide Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	19	4 - 30
Number of Positions	-	16
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	200 V	200 V

Part

Housing Color

Cable End Type

Flat Flex Type

Material Flammability Rating

Pitch [x]

Contact Finish Thickness

Housing Material

Termination

Operating Temperature [Max]

Operating Temperature [Min]

Features

Actuator Material

Connector/Contact Type

Contact Finish

Voltage Rating

Actuator Color

FFC, FCB Thickness

Contact Material

Number of Positions

Locking Feature

Height Above Board

Mounting Type

Number of Positions

TE Connectivity AMP Connectors

3-84953-0

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

84953-4

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

2-84953-0

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

1-84953-1

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

1-84953-6

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

2-84953-9

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

2-84953-8

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

2-84953-7

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

2-84953-2

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

22 positions

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

TE Connectivity AMP Connectors

84953-9

Natural

Straight

FPC

UL94 V-0

0.039 in

1 mm

2 µm

78.7 µin

Liquid Crystal Polymer (LCP), Glass Filled

Solder

85 °C

-40 °C

Solder Retention, Zero Insertion Force (ZIF)

Glass Filled, Nylon, Polyamide (PA)

Contacts, Top

Tin

200 V

Black

0.3 mm

Phosphor Bronze

Slide Lock

0.101 "

2.56 mm

Surface Mount, Right Angle

Part	Housing Color	Cable End Type	Flat Flex Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Material	Connector/Contact Type	Contact Finish	Voltage Rating	Actuator Color	FFC, FCB Thickness	Contact Material	Number of Positions	Locking Feature	Height Above Board	Height Above Board	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 3-84953-0	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	30	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 84953-4	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	4	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 2-84953-0	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	20	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 1-84953-1	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	11	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 1-84953-6	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze		Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle	16
TE Connectivity AMP Connectors 2-84953-9	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	29	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 2-84953-8	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	28	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 2-84953-7	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	27	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 2-84953-2	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	22 positions	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
TE Connectivity AMP Connectors 84953-9	Natural	Straight	FPC	UL94 V-0	0.039 in	1 mm	2 µm	78.7 µin	Liquid Crystal Polymer (LCP), Glass Filled	Solder	85 °C	-40 °C	Solder Retention, Zero Insertion Force (ZIF)	Glass Filled, Nylon, Polyamide (PA)	Contacts, Top	Tin	200 V	Black	0.3 mm	Phosphor Bronze	9	Slide Lock	0.101 "	2.56 mm	Surface Mount, Right Angle
