MUSBR-05-F-O-B-SM-A

Active

Samtec Inc.

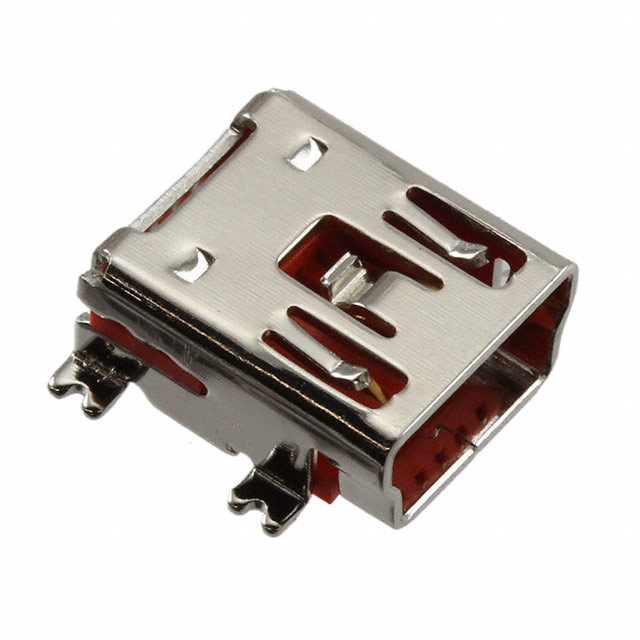

CONN MINI USB 2.0 TYPE B RCP 5 POS SOLDER RA SMD 5 TERMINAL 1 PORT TRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MINI USB 2.0 TYPE B RCP 5 POS SOLDER RA SMD 5 TERMINAL 1 PORT TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBR-05-F-O-B-SM-A

Connector Type	USB - mini B
Contact Finish	Gold
Features	Solder Retention, Board Guide
Gender	Receptacle
Insulation Color	Orange
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shell/Shielding Material	Brass
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Shell/Shielding Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Feature	Gender	Insulation Color	Features	Shielding	Specifications	Voltage - Rated	Number of Ports	Number of Contacts	Contact Finish	Mating Cycles	Termination
Samtec Inc. MUSBR-05-F-O-B-SM-A	Brass	Surface Mount Right Angle	85 °C	-50 °C	USB - mini B	Horizontal	Receptacle	Orange	Board Guide Solder Retention	Unshielded	USB 2.0	30 V	1	5	Gold	1500	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
