430013-501
Laird Thermal Systems, Inc.

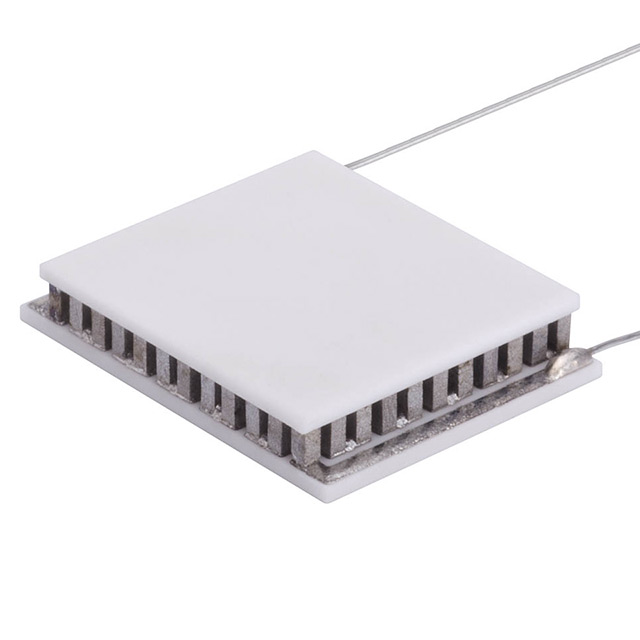

PELTIER OT15,66,F0,1211,11,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430013-501
Laird Thermal Systems, Inc.
PELTIER OT15,66,F0,1211,11,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430013-501 |
|---|---|
| Current - Max [Max] | 1.5 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.44 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 6.8 W |
| Resistance | 4.59 Ohms |
| Size / Dimension [x] | 14.4 mm |
| Size / Dimension [y] | 11.3 mm |
| Voltage - Max [Max] | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.88 | |
Description
General part information
430013 Series
Peltier Module 6.8W @ 25°C 1.5 A 80°C
Documents
Technical documentation and resources
