PEN.2M.312.XLMT

Active

LEMO

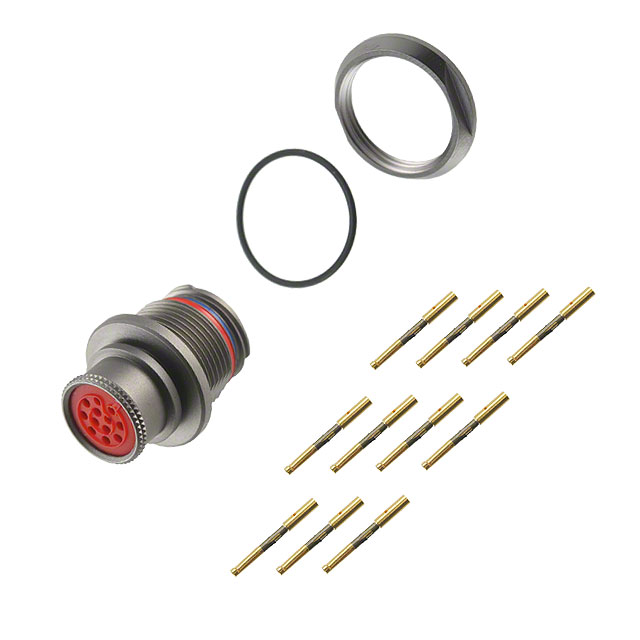

CONN RCPT FMALE 12POS GOLD CRIMP

Deep-Dive with AI

DocumentsM Series Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 121.89
		10	$ 94.98
		25	$ 86.48
		50	$ 80.75
		100	$ 75.56

Description

General part information

PEN.2M Series

12 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

M Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PEN.2M.312.XLMT	PEN.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.512 in	0.512 in
Cable Opening [custom]	13 mm	13 mm
Color	Gray	Gray, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	7 A	4 - 23 A
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	12	6 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	312	306 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

PEN.2M Series

CONN RCPT FMALE 6POS GOLD CRIMP

Part	Shielding	Ingress Protection	Insert Material	Termination	Current Rating (Amps)	Orientation	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Mounting Feature	Color	Contact Finish - Mating	Connector Type	Applications	Number of Positions	Shell Size - Insert	Contact Material
LEMO PEN.2M.306.XRMT3	Shielded	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Crimp	10.5 A, 18 A	N	0.512 in	13 mm	Aluminum Alloy	59 Áin	1.5 Ám	Nickel	-55 °C	200 °C	Metal	Bulkhead - Front Side Nut	Gray	Gold	Receptacle, Female Sockets	Aerospace, Automotive, Aviation, Military	6	306	Bronze
LEMO PEN.2M.308.XRMT6	Shielded	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Crimp	7 A, 23 A	N	0.512 in	13 mm	Aluminum Alloy	59 Áin	1.5 Ám	Nickel	-55 °C	200 °C	Metal	Bulkhead - Front Side Nut	Gray	Gold	Receptacle, Female Sockets	Aerospace, Automotive, Aviation, Military	8	308	Bronze
LEMO PEN.2M.319.CLMT	Shielded	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Crimp	4 A	N	0.512 in	13 mm	Brass	59 Áin	1.5 Ám	Chrome	-55 °C	200 °C	Metal	Bulkhead - Front Side Nut	Silver	Gold	Receptacle, Female Sockets	Aerospace, Automotive, Aviation, Military	19	319	Bronze
LEMO PEN.2M.308.XLMT	Shielded	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Crimp	10 A	N	0.512 in	13 mm	Aluminum Alloy	59 Áin	1.5 Ám	Nickel	-55 °C	200 °C	Metal	Bulkhead - Front Side Nut	Gray	Gold	Receptacle, Female Sockets	Aerospace, Automotive, Aviation, Military	8	308	Bronze
LEMO PEN.2M.312.XLMT	Shielded	IP68 - Dust Tight, Waterproof	Polyetheretherketone (PEEK)	Crimp	7 A	N	0.512 in	13 mm	Aluminum Alloy	59 Áin	1.5 Ám	Nickel	-55 °C	200 °C	Metal	Bulkhead - Front Side Nut	Gray	Gold	Receptacle, Female Sockets	Aerospace, Automotive, Aviation, Military	12	312	Bronze
