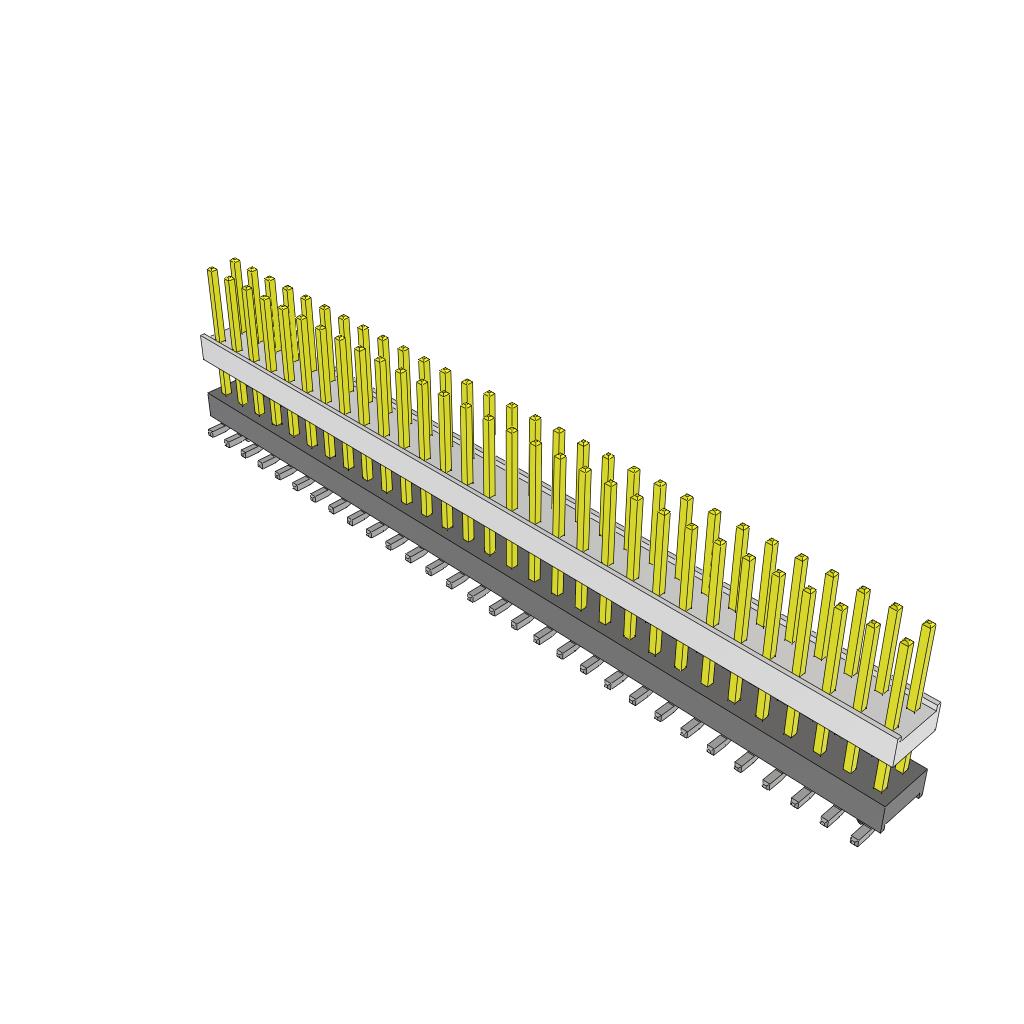

HW-30-09-L-D-393-SM-A

Active

Samtec Inc.

CONN HDR 60POS 0.1 STACK SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 60POS 0.1 STACK SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HW-30-09-L-D-393-SM-A

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	16.891 mm
Length - Overall Pin [x]	0.665 in
Length - Post (Mating) [x]	6.909 mm
Length - Post (Mating) [x]	0.272 in
Length - Stack Height [x]	0.393 in
Length - Stack Height [x]	9.982 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Number of Rows	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin	Length - Overall Pin [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Number of Positions	Row Spacing [x]	Row Spacing
Samtec Inc. HW-30-09-F-D-453-SM	2	Solder	3 Áin	0.076 Ám	16.891 mm	0.665 in	Surface Mount	0.212 in	5.385 mm	Black	2.54 mm	0.1 in	11.506 mm	0.453 in	Gold	60	0.1 in	2.54 mm
Samtec Inc. HW-30-09-L-D-393-SM-A	2	Solder	10 Áin	0.25 Ám	16.891 mm	0.665 in	Surface Mount	0.272 in	6.909 mm	Black	2.54 mm	0.1 in	9.982 mm	0.393 in	Gold	60	0.1 in	2.54 mm
