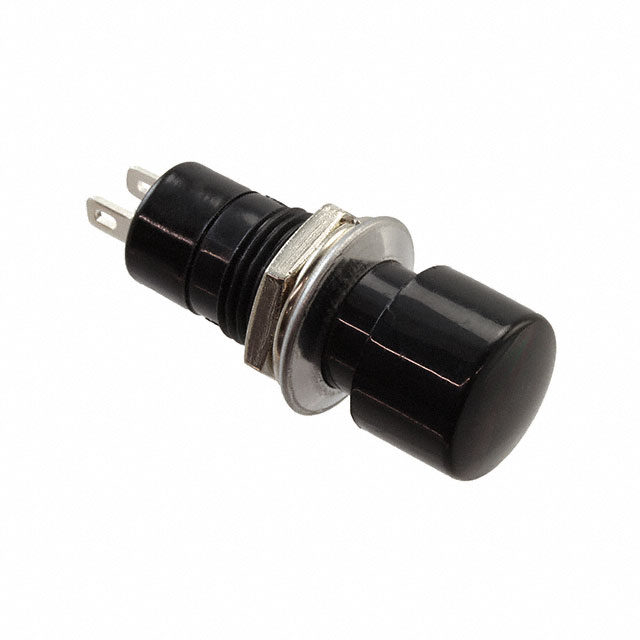

PS1040BBLK

Active

E-Switch

SWITCH PUSHBUTTON SPST 3A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	PS1040BBLK

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	6000 Cycles
Mechanical Life	6000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Actuator Type	Mounting Type	Actuator Marking	Electrical Life	Circuit	Mechanical Life	Switch Function	Panel Cutout Dimensions [diameter]	Type	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Color - Actuator/Cap
E-Switch PS1040ABLK	Button Round	Panel Mount Front	No Marking	6000 Cycles	SPST-NO	6000 Cycles	Off-Mom	12.4 mm	Standard	3 A	Solder Lug	125 V	Black
E-Switch PS1040ARED	Button Round	Panel Mount Front	No Marking	6000 Cycles	SPST-NO	6000 Cycles	Off-Mom	12.4 mm	Standard	3 A	Solder Lug	125 V	Red
E-Switch PS1040BBLK	Button Round	Panel Mount Front	No Marking	6000 Cycles	SPST	6000 Cycles	Off-On	12.4 mm	Standard	3 A	Solder Lug	125 V	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Standard Panel Mount, Front
