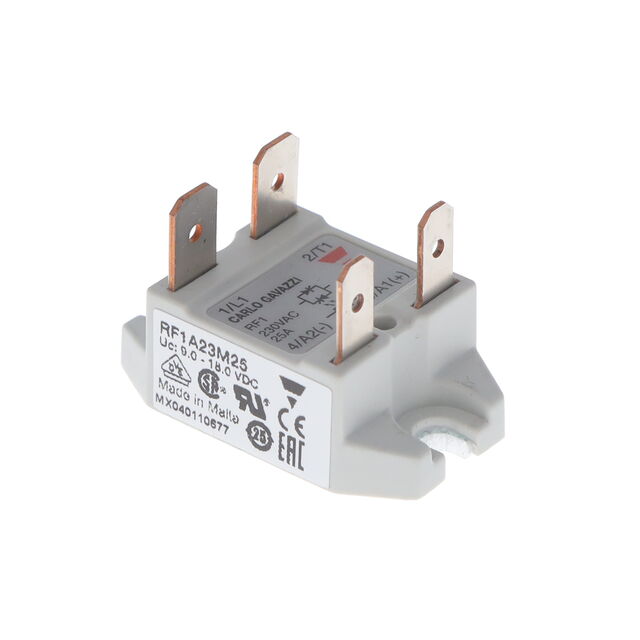

RF1A23M25
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 25A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RF1A23M25
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 25A 24-280V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RF1A23M25 |
|---|---|
| Approval Agency | EAC, CE, cURus, CSA, VDE |
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Quick Connect, Disconnect |
| Voltage - Input [Max] | 18 V, 12 V |
| Voltage - Input [Min] | 9 VDC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.00 | |
| 10 | $ 38.95 | |||
| 50 | $ 36.90 | |||
| 100 | $ 35.67 | |||
Description
General part information
RF1A23 Series
Solid State SPST-NO (1 Form A) Hockey Puck
