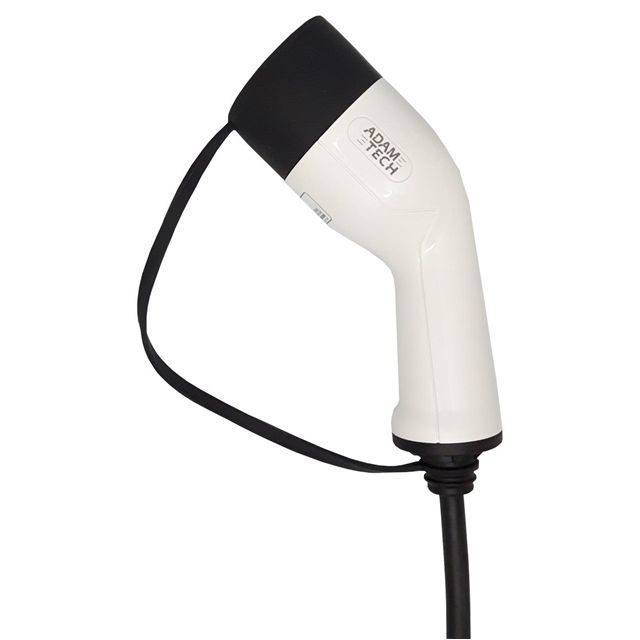

CA #EV03AT-004-5M

Active

Adam Tech

TYPE 2 FEMALE PLUG 5M 16A 3 PHAS

Search across all available documentation for this part.

Active

Adam Tech

TYPE 2 FEMALE PLUG 5M 16A 3 PHAS

Technical Specifications

Parameters and characteristics for this part

Specification	CA #EV03AT-004-5M

1st Connector	IEC 62196-2 (Type 2)
2nd Connector	5 Ring Terminals, 1 Ferrule
Color	Black
Current Rating (Amps)	16 A
Features	Charging, Electric Vehicles
Number of Conductors [custom]	2
Number of Conductors [custom]	5
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Shielding	Unshielded
Style	Female Plug to Leads with Terminals
Voltage Rating	480 VAC
Wire Gauge	20 AWG, 13.5 AWG

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	2nd Connector	Current Rating (Amps)	Features	Length [x]	Length [x]	Number of Conductors [custom]	Number of Conductors [custom]	1st Connector	Style	Shielding	Voltage Rating
Adam Tech CA #EV03AT-004-3M	Black	50 °C	-30 ░C	13.5 AWG 20 AWG	1 Ferrule 5 Ring Terminals	16 A	Charging Electric Vehicles	9.84 ft	3 m	2	5	IEC 62196-2 (Type 2)	Female Plug to Leads with Terminals	Unshielded	480 VAC
Adam Tech CA #EV03AT-004-5M	Black	50 °C	-30 ░C	13.5 AWG 20 AWG	1 Ferrule 5 Ring Terminals	16 A	Charging Electric Vehicles			2	5	IEC 62196-2 (Type 2)	Female Plug to Leads with Terminals	Unshielded	480 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	15	$ 163.64

General part information

16.40' (5.00m) Power Cord Black IEC 62196-2 (Type 2) To 5 Ring Terminals, 1 Ferrule
