8771ZH 060500

Active

Belden Inc.

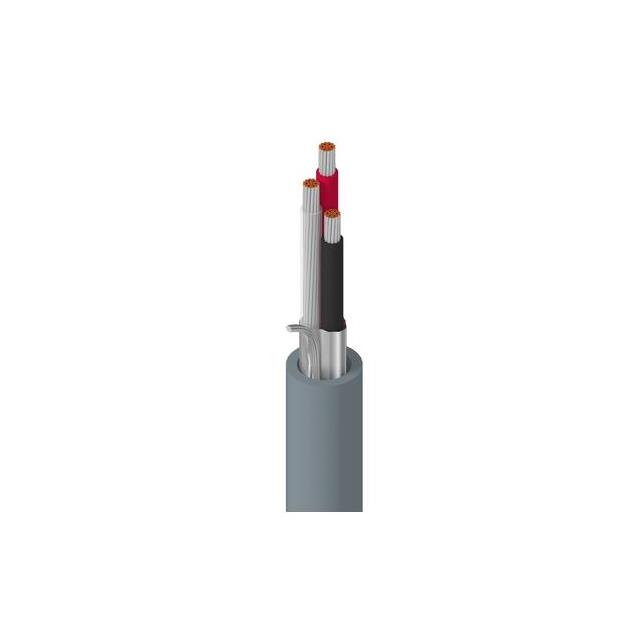

CABLE 3CON 22AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 22AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8771ZH 060500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Shield Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Insulation	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Material	Shield Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features
Belden Inc. 8771ZH 060500	3	Aluminum	Multi-Conductor	7	30 AWG	300 V	Polyethylene (PE)	22 AWG	500 '	152.4 m	5.06 mm	0.199 in	100 %	Copper Tinned	Foil	Chrome	0.838 mm	0.033 in	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.77

General part information

3 Conductor Multi-Conductor Cable Chrome 22 AWG Foil 500.0' (152.4m)
