EB171SA-07-M
ActiveAdam Tech

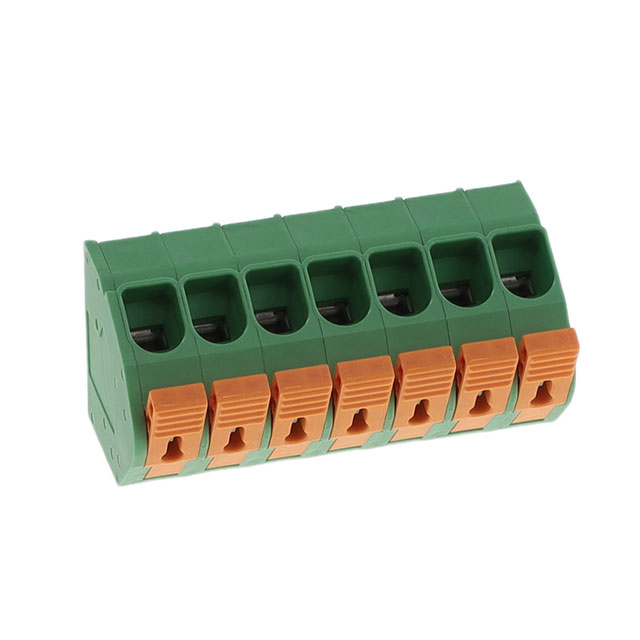

TERM BLOCK 7POS 30DEG 7.5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EB171SA-07-M |
|---|---|
| Color | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 27 A |
| Features | Lever Actuated |
| Mating Orientation | 150 ° |
| Mating Orientation | 30 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.295 in |
| Pitch [x] | 7.5 mm |
| Positions Per Level | 7 |
| Voltage | 600 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 10 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.63 | |
| 10 | $ 4.70 | |||
| 25 | $ 4.13 | |||
| 60 | $ 3.70 | |||
| 120 | $ 3.43 | |||
| 300 | $ 3.15 | |||
| 540 | $ 3.01 | |||
| 1020 | $ 2.89 | |||
Description
General part information
EB171SA Series
7 Position Wire to Board Terminal Block 30° (150°) Angle with Board 0.295" (7.50mm) Through Hole
