5101FH 0081000

Active

Belden Inc.

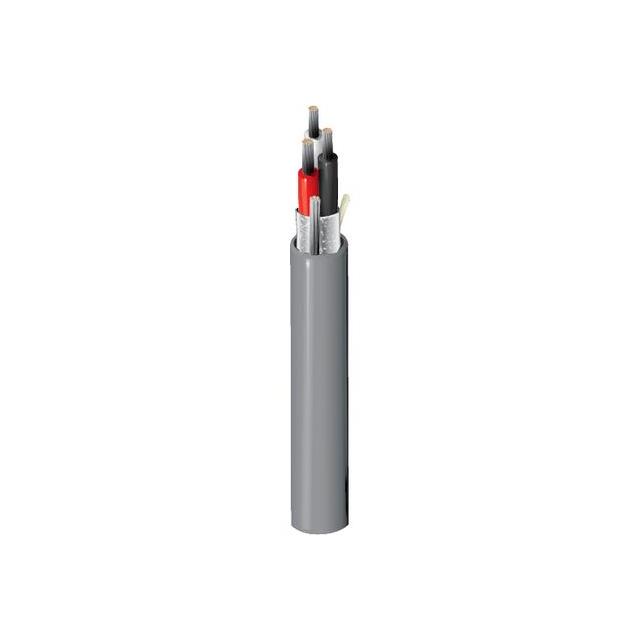

CABLE 3CON 14AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 14AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5101FH 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Ratings	UL Style CL3R
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Commercial Audio
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Length	Length	Wire Gauge	Shield Type	Ratings	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Shield Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Voltage	Jacket Color	Shield Coverage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 5101FH 0081000	1000 ft	304.8 m	13.5 AWG	Foil	UL Style CL3R	3	Poly-Vinyl Chloride (PVC) Riser	Copper Tinned	Aluminum	Commercial Audio	6.22 mm	0.245 in	Polypropylene (PP)	Rip Cord	300 V	Gray	100 %	Multi-Conductor	0.432 mm	0.017 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Gray 14 AWG Foil 1000.0' (304.8m)
