89841 002500

Active

Belden Inc.

CABLE 2COND 24AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 24AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	89841 002500

Cable Type	Multi-Conductor
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.13 mm
Jacket (Insulation) Diameter [diameter]	0.202 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Material	Wire Gauge	Jacket Color	Conductor Insulation	Features	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Voltage	Usage	Ratings	Shield Coverage	Shield Type	Conductor Material	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 89841 002500	Aluminum Copper Tinned	24 AWG	Red	Foam Fluorinated Ethylene-Propylene (FFEP)	Drain Wire	Multi-Conductor	5.13 mm	0.202 in	0.356 mm	0.014 in	2	300 V	Computer	UL Style CMP	90 % 100 %	Braid Foil	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	200 °C	-70 °C	500 '	152.4 m	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 7.43

General part information

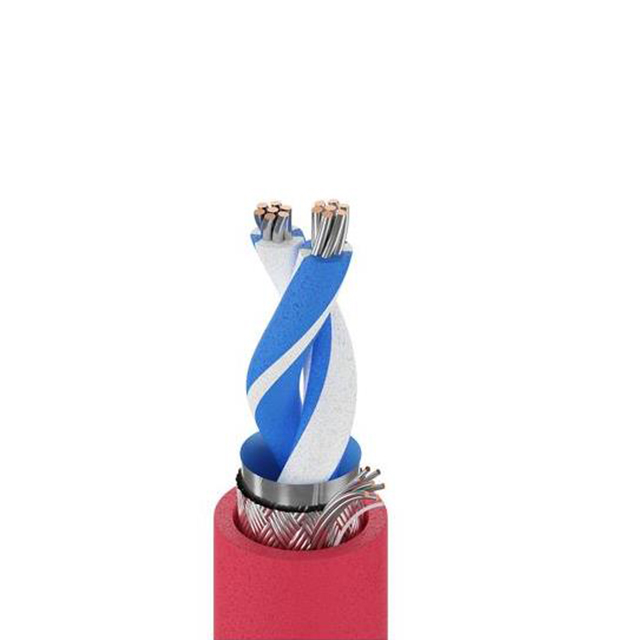

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Red 24 AWG Foil, Braid 500.0' (152.4m)
