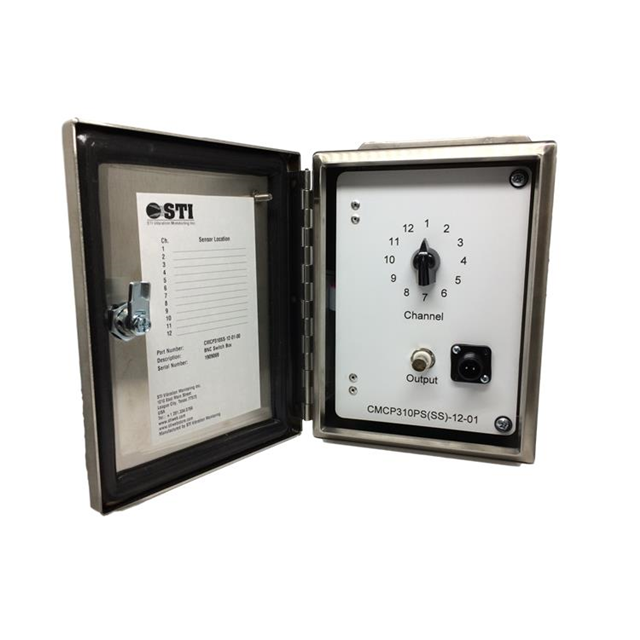

CMCP310SS-36-01-00

Active

STI Vibration Monitoring

JUNCTION BOX S STL 16"L X 14"W

Search across all available documentation for this part.

Active

STI Vibration Monitoring

JUNCTION BOX S STL 16"L X 14"W

Technical Specifications

Parameters and characteristics commom to parts in this series

JUNCTION BOX S STL GRY 8"L X 6"W

Part	Ratings	Color	Container Type	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W)	Design	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W) [x]	Area (L x W) [x]	Size / Dimension [y]	Size / Dimension [x]
STI Vibration Monitoring CMCP310SS-06-01-00	IP66, NEMA 4X	Gray	Junction Box	101.6 mm	101.6 mm	47.9 in˛	309 cm˛	Cover Included
STI Vibration Monitoring CMCP310SS-24-01-00	IP66, NEMA 4X	Gray	Junction Box	203.2 mm	8 "		774 cm²	Cover Included	254 mm, 304.8 mm	12 in	10 in	120 in²
STI Vibration Monitoring CMCP310SS-36-01-00	IP66, NEMA 4X	Gray	Junction Box	254 mm	10 in			Cover Included		16 in	14 in		224 in˛	1445 cm˛	355.6 mm	406.4 mm
STI Vibration Monitoring CMCP310SS-48-01-00	IP66, NEMA 4X	Gray	Junction Box	254 mm	10 in		1445 cm²	Cover Included		16 in	14 in	224 in²			355.6 mm	406.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1845.00

General part information

Junction Box Metal, Stainless Steel Gray Cover Included 16.000" L x 14.000" W (406.40mm x 355.60mm) X 10.000" (254.00mm)
