135106-R1-12.00

Active

Amphenol RF

COAX CBL SMA TO SMA 12"

Search across all available documentation for this part.

Active

Amphenol RF

COAX CBL SMA TO SMA 12"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Contact Gender	1st Connector	1st Connector Mounting Type	Length	Length	Style	Cable Type	2nd Connector Mounting Type	Color	Overall Impedance	2nd Connector	1st Contact Gender	Features	Cable Impedance	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol RF 135106-R1-24.00	Male	SMA Jack	Free Hanging (In-Line)	24 "	609.6 mm	SMA to SMA	Hand Formable .085	Free Hanging (In-Line)	Gray	50 Ohms	SMA Plug	Female
Amphenol RF 135106-R1-06.00	Male	SMA Jack	Free Hanging (In-Line)	6 in	152.4 mm	SMA to SMA	Hand Formable .085	Free Hanging (In-Line)	Gray	50 Ohms	SMA Plug	Female
Amphenol RF 135106-01-12.00	Male	SMA Jack	Free Hanging (In-Line)	12 "	304.8 mm	SMA to SMA	RG-316	Free Hanging (In-Line)		50 Ohms	SMA Plug	Female	Shielded	50 Ohms	3 GHz
Amphenol RF 135106-01-36.00	Male	SMA Jack	Free Hanging (In-Line)	36 in	91.44 cm	SMA to SMA	RG-316	Free Hanging (In-Line)		50 Ohms	SMA Plug	Female	Shielded	50 Ohms	3 GHz
Amphenol RF 135106-R1-18.00	Male	SMA Jack	Free Hanging (In-Line)			SMA to SMA	Hand Formable .085	Free Hanging (In-Line)	Gray	50 Ohms	SMA Plug	Female				457.2 mm	457.2 mm
Amphenol RF 135106-01-24.00	Male	SMA Jack	Free Hanging (In-Line)	24 "	609.6 mm	SMA to SMA	RG-316	Free Hanging (In-Line)		50 Ohms	SMA Plug	Female	Shielded	50 Ohms	3 GHz
Amphenol RF 135106-R1-12.00	Male	SMA Jack	Free Hanging (In-Line)	12 "	304.8 mm	SMA to SMA	Hand Formable .085	Free Hanging (In-Line)	Gray	50 Ohms	SMA Plug	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 31.02

General part information

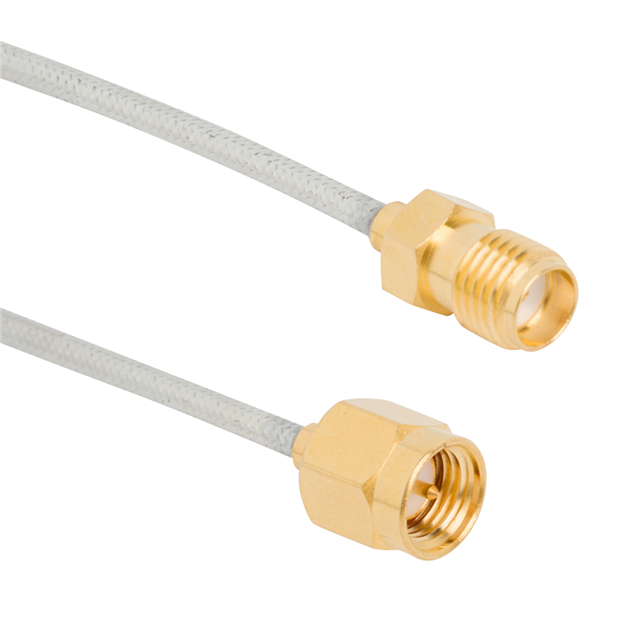

Cable Assembly Coaxial SMA to SMA Hand Formable .085 12.00" (304.80mm)

Technical documentation and resources

No documents available
