ZL30731LDG1S
ActiveONE CHANNEL SYNCE&1588 NETWORK SYNCHRONIZER
Deep-Dive with AI
Search across all available documentation for this part.
ZL30731LDG1S
ActiveONE CHANNEL SYNCE&1588 NETWORK SYNCHRONIZER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZL30731LDG1S |
|---|---|
| Differential - Input:Output [custom] | True |
| Differential - Input:Output [custom] | True |
| Frequency - Max [Max] | 750 MHz |
| Main Purpose | Memory |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |

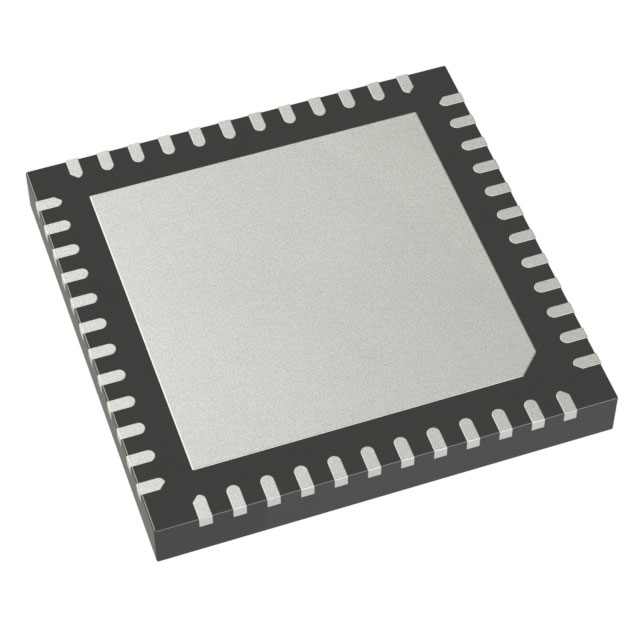

| Package / Case | 48-VFQFN Exposed Pad |
| PLL | True |
| Ratio - Input:Output [custom] | 10 |
| Ratio - Input:Output [custom] | 5 |
| Supplier Device Package | 48-QFN (7x7) |
| Voltage - Supply | 1.8 V, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 83.11 | |
| Microchip Direct | TRAY | 1 | $ 83.11 | |
| 25 | $ 69.26 | |||
| 100 | $ 62.96 | |||
| 1000 | $ 60.82 | |||
| 5000 | $ 60.13 | |||
ZL30731 Series
One Channel SyncE&1588 Network Synchronizer
| Part | Number of Circuits | Frequency - Max [Max] | Mounting Type | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Package / Case | Supplier Device Package | Main Purpose | Voltage - Supply | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | PLL | Output | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL30731LDG1S | 1 | 750 MHz | Surface Mount | 48-VFQFN Exposed Pad | 48-QFN (7x7) | Memory | 1.8 V, 3.3 V | 10 | 5 | CMOS | 85 °C | -40 °C |
Description
General part information
ZL30731 Series
The ZL30731 is a feature-rich network synchronization solution with up to four independent DPLLs and five extremely low output jitter synthesizers combined with IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithm software packages. This is an ideal central Timing solution for applications such as routers, switches, optical transparent network and 4G/5G wireless base stations (CU/DU/RU).
We also have ZL3064x as line card jitter attenuators, such as [**ZL30642A**](https://www.microchip.com/wwwproducts/en/ZL30642A), to form full SyncE&IEEE1588 Timing solution for any rack system.
[Click here to know about our full IEEE1588 software solution and profiles we can support.](https://www.microchip.com/en-us/product/ZLS30390)
