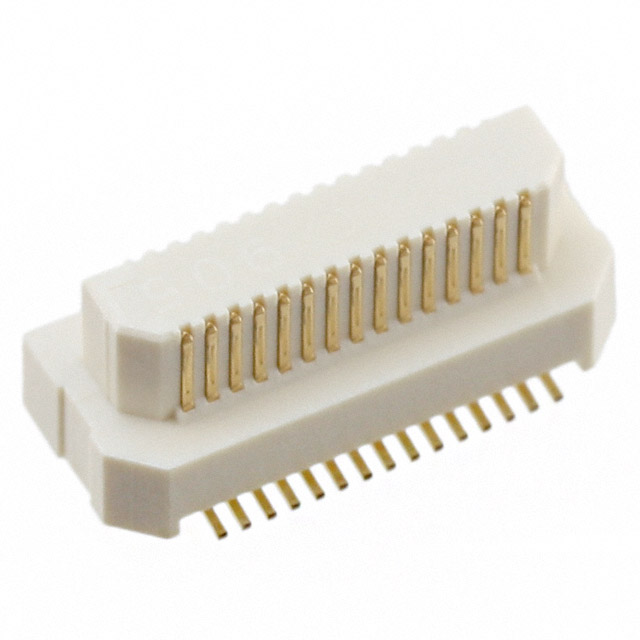

AXK6S30547YG

Active

Panasonic Electric Works

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK6S30547YG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	5.5 mm, 8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Rows	Connector Type
Panasonic Electric Works AXK6S30547YA	Surface Mount	0.5 mm	0.02 in	30	Gold	5 mm 5.5 mm 8 mm	0.169 in	4.3 mm	2	Header Outer Shroud Contacts
Panasonic Electric Works AXK6S30547YG	Surface Mount	0.5 mm	0.02 in	30	Gold	5 mm 5.5 mm 8 mm	0.169 in	4.3 mm	2	Header Outer Shroud Contacts
