A9CAG-0904F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFG09G/AF09/AFE09T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9CAG-0904F | A9CAG Series |
|---|---|---|
| Length | - | 76.2 - 203.2 mm |
| Length | - | 6 - 8 in |
| Length [x] | 101.6 mm | 101.6 - 127 mm |
| Length [x] | 4 " | 3 - 5 in |
| Number of Positions | 9 | 2 - 20 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.16 | |
| 10 | $ 5.93 | |||
| 25 | $ 5.50 | |||
| 50 | $ 5.20 | |||
| 100 | $ 4.92 | |||
| 250 | $ 4.56 | |||
| 500 | $ 4.32 | |||
| 1000 | $ 4.08 | |||
| 2500 | $ 3.86 | |||
A9CAG Series
FLEX CABLE - AFG12G/AF12/AFE12T
...
| Part | Pitch [x] | Pitch [x] | Number of Positions | Length [x] | Length | Length [x] | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9CAG-1203F | 2.54 mm | 0.1 in | 12 | 3 in | 76.2 mm | |||
TE Connectivity AMP Connectors A9CAG-0205F | 2.54 mm | 0.1 in | 2 | 5 in | 127 mm | |||
TE Connectivity AMP Connectors A9CAG-1606F | 2.54 mm | 0.1 in | 152.4 mm | 6 in | 16 | |||
TE Connectivity AMP Connectors A9CAG-1202F | 2.54 mm | 0.1 in | 12 | |||||
TE Connectivity AMP Connectors A9CAG-1605F | 2.54 mm | 0.1 in | 5 in | 127 mm | 16 | |||
TE Connectivity AMP Connectors A9CAG-1304F | 2.54 mm | 0.1 in | 13 | 4 " | 101.6 mm | |||
TE Connectivity AMP Connectors A9CAG-0802F | 2.54 mm | 0.1 in | 8 | |||||
TE Connectivity AMP Connectors A9CAG-1508F | 2.54 mm | 0.1 in | 15 | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9CAG-0904F | 2.54 mm | 0.1 in | 9 | 4 " | 101.6 mm | |||
TE Connectivity AMP Connectors A9CAG-0405F | 2.54 mm | 0.1 in | 4 | 5 in | 127 mm |
Description
General part information
A9CAG Series

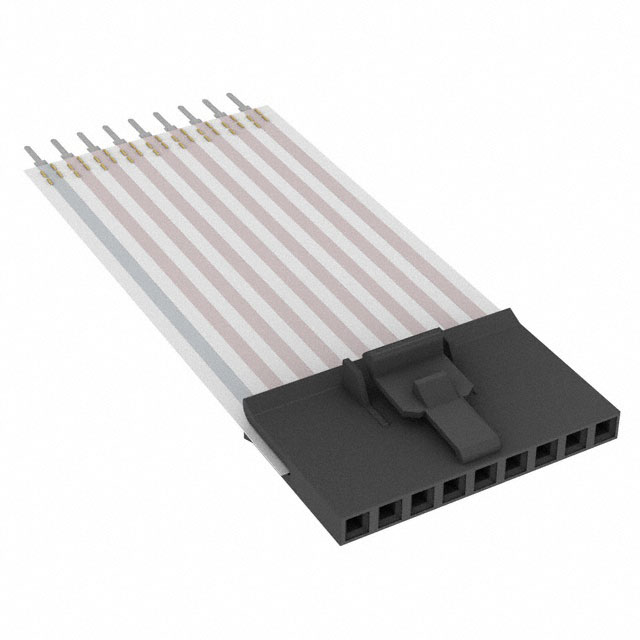

9 Position Flat Flex Cable Assembly Receptacle with Latch to Solder Tab 4.00" (101.60mm)
