PE0601-7262

Active

CML Micro

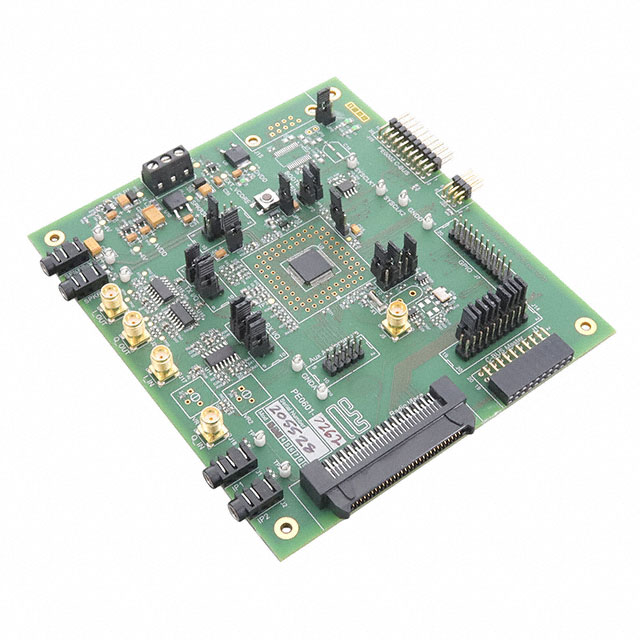

EVALUATION BOARD FOR CMX7262

Search across all available documentation for this part.

Active

CML Micro

EVALUATION BOARD FOR CMX7262

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE0601-7262	CMX7262 Series

Contents	Board(s)	Board(s)
Current - Supply	-	670 µA
Function	Modem	TWELP Vocoder, Modem
Interface	-	C-Bus
Mounting Type	-	Surface Mount
Number of Circuits	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	64-LQFP, 64-VFQFN Exposed Pad
Power (Watts)	-	3.5 W
Secondary Attributes	Graphical User Interface (GUI)	Graphical User Interface (GUI)
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	64-LQFP (10x10), 64-VQFN (9x9)
Type	Telecom	Telecom
Utilized IC / Part	CMX7x6x	CMX7x6x
Voltage - Supply	-	3.6 V
Voltage - Supply	-	3 V

IC TELECOM INTERFACE 64LQFP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Interface	Number of Circuits	Function	Package / Case	Supplier Device Package	Power (Watts)	Current - Supply	Contents	Supplied Contents	Utilized IC / Part	Secondary Attributes	Type
CML Micro CMX7262L9	85 °C	-40 °C	3.6 V	3 V	Surface Mount	C-Bus	1	TWELP Vocoder	64-LQFP	64-LQFP (10x10)	3.5 W	670 µA
CML Micro PE0601-7262								Modem					Board(s)	Board(s)	CMX7x6x	Graphical User Interface (GUI)	Telecom
CML Micro CMX7262Q1	85 °C	-40 °C	3.6 V	3 V	Surface Mount	C-Bus	1	TWELP Vocoder	64-VFQFN Exposed Pad	64-VQFN (9x9)	3.5 W	670 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 316.73

General part information

CMX7x6x FirmASIC® Modem Telecom Evaluation Board
