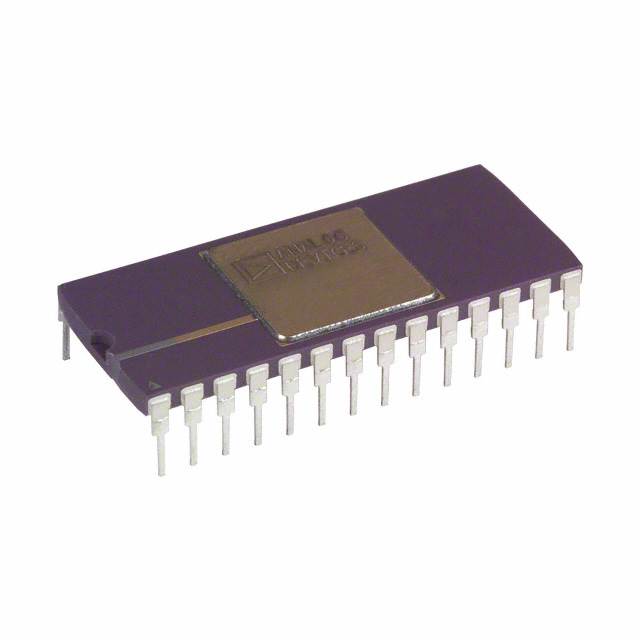

5962-8850902XA
ObsoleteAnalog Devices
IC DAC 12BIT V-OUT 28CDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5962-8850902XA
ObsoleteAnalog Devices
IC DAC 12BIT V-OUT 28CDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5962-8850902XA |
|---|---|
| Data Interface | Parallel |
| Differential Output | False |
| Grade | Military |
| INL/DNL (LSB) | 0.5 LSB, 0.25 LSB |
| Mounting Type | Through Hole |
| Number of Bits | 12 bits |
| Number of D/A Converters | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Voltage - Buffered |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 28-CDIP |
| Qualification | MIL-STD-883 |
| Reference Type | External, Internal |
| Settling Time | 8 µs |
| Voltage - Supply, Analog [Max] | 16.5 V |
| Voltage - Supply, Analog [Min] | -13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5962-8850902 Series
12 Bit Digital to Analog Converter 4 28-SBDIP-H
