N3408-6303RB

Active

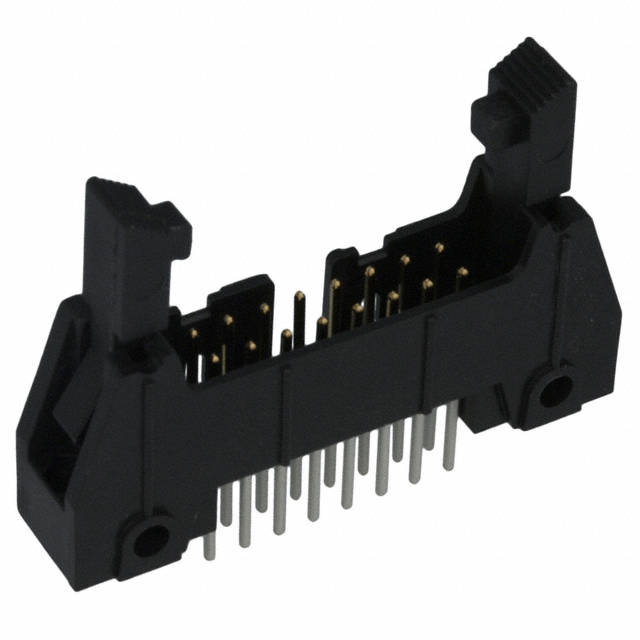

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3408-6303RB

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3408-6303RB	N3408 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long, Latch Lock/Eject Hooks, Short, Push-Pull
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.27 mm
Insulation Height	0.68 in	0.31 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.695 in	0.652 - 0.695 in
Overall Contact Length	17.65 mm	16.56 - 17.65 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 3 Wall, Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N3408 Series

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Insulation Material	Contact Finish - Post	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Style	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Number of Positions	Shrouding	Overall Contact Length	Overall Contact Length
3M N3408-1302RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 3 Wall
3M N3408-6302RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 4 Wall	0.652 in	16.56 mm
3M N3408-2302RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 3 Wall	0.652 in	16.56 mm
3M N3408-6502	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin-Lead	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Short	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 4 Wall	0.652 in	16.56 mm
3M N3408-1202RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Short	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 3 Wall
3M N3408-2203RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Short	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 3 Wall	0.695 in	17.65 mm
3M N3408-6002RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Push-Pull	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	2.84 mm	0.112 in	Male Pin	2	16	Shrouded - 4 Wall	0.652 in	16.56 mm
3M N3408-1003RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.31 in	7.87 mm	UL94 V-0	Black	6.1 mm	0.24 in	Push-Pull	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 3 Wall
3M N3408-5003RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole, Right Angle	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.34 in	8.64 mm	UL94 V-0	Black	6.1 mm	0.24 in	Push-Pull	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 4 Wall
3M N3408-6303RB	30 Áin	0.76 Ám	Header	All	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Square	105 ░C	-55 °C	Solder	Gold	Through Hole	200 µin	5.08 µm	0.1 in	2.54 mm	Copper Alloy	0.68 in	17.27 mm	UL94 V-0	Black	6.1 mm	0.24 in	Latch Lock/Eject Hooks, Long	Board to Board, Cable	1.75 A	2.54 mm	0.1 in	3.94 mm	0.155 "	Male Pin	2	16	Shrouded - 4 Wall	0.695 in	17.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.79
		10	$ 3.22
		350	$ 2.51
		700	$ 2.39
		1050	$ 2.32

Description

General part information

N3408 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
