EN2C2F20G2W
ActiveSwitchcraft Inc.

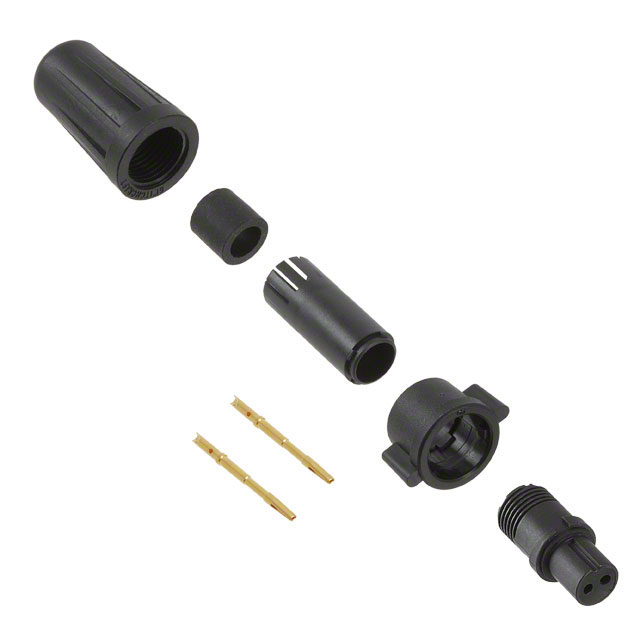

CONN PLUG FMALE 2POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2C2F20G2W
ActiveSwitchcraft Inc.
CONN PLUG FMALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2C2F20G2W | EN2C2F Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.22 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 5.59 mm |
| Cable Opening | - | 2.54 - 3.56 mm |
| Cable Opening | - | 0.1 - 0.14 in |
| Cable Opening [Max] [diameter] | 4.57 mm | 4.57 mm |
| Cable Opening [Max] [diameter] | 0.18 in | 0.18 in |
| Cable Opening [Min] [diameter] | 3.56 mm | 3.56 mm |
| Cable Opening [Min] [diameter] | 0.14 in | 0.14 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 3.5 A | 3.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell, Winged | Coupling Nut, Backshell, Winged |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup |
| Voltage Rating | 250 VAC | 250 VAC |
EN2C2F Series
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Backshell Material, Plating | Applications | Orientation | Contact Finish - Mating | Ingress Protection | Fastening Type | Primary Material | Contact Material | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Shielding | Color | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Voltage Rating | Connector Type | Mounting Type | Number of Positions | Features | Termination | Current Rating (Amps) | Material Flammability Rating | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2C2F20G3 | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut | Crimp, Solder Cup | 3.5 A | UL94 V-0 | ||||||
Switchcraft Inc. EN2C2F20G3W | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | 0.18 in | 0.22 in | 4.57 mm | 5.59 mm | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut, Winged | Crimp, Solder Cup | 3.5 A | UL94 V-0 | ||||||
Switchcraft Inc. EN2C2F20G1W | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut, Winged | Crimp, Solder Cup | 3.5 A | UL94 V-0 | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||||||
Switchcraft Inc. EN2C2F20G2W | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut, Winged | Crimp, Solder Cup | 3.5 A | UL94 V-0 | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in | ||||||
Switchcraft Inc. EN2C2F20DC | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut | Crimp, Solder Cup | 3.5 A | UL94 V-0 | ||||||||||
Switchcraft Inc. EN2C2F20G1 | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut | Crimp, Solder Cup | 3.5 A | UL94 V-0 | 2.54 mm, 3.56 mm | 0.1 in, 0.14 in | ||||||||
Switchcraft Inc. EN2C2F20DCW | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut, Winged | Crimp, Solder Cup | 3.5 A | UL94 V-0 | ||||||||||
Switchcraft Inc. EN2C2F20G2 | Thermoplastic | Communication Systems, Industrial, Marine, Medical | Keyed | Gold | IP66, IP67, IP68 | Bayonet Lock | Plastic | Copper Alloy | Unshielded | Black | 85 °C | -40 °C | Elastomer | 250 VAC | Female Sockets, Plug | Free Hanging (In-Line) | 2 | Backshell, Coupling Nut | Crimp, Solder Cup | 3.5 A | UL94 V-0 | 4.57 mm | 3.56 mm | 0.14 in | 0.18 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 6.42 | |
Description
General part information
EN2C2F Series
2 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
