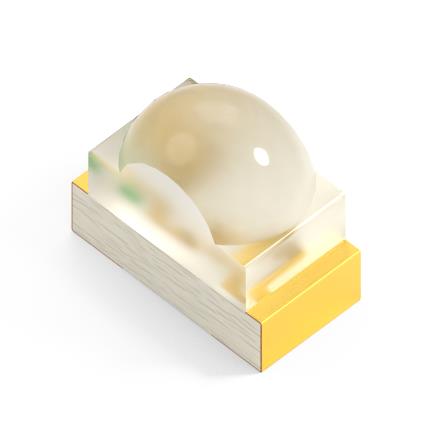

XZFBB79W
ActiveSunLED
LED BLUE CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFBB79W
ActiveSunLED
LED BLUE CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFBB79W |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 3.2 mm |
| Lens Color | Colorless |
| Lens Size [x] | 3 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 745 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1507 |
| Package / Case | 3718 Metric |
| Size / Dimension [x] | 3.8 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 35 °, 60 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| Tape & Reel (TR) | 500 | $ 0.28 | ||
| 1000 | $ 0.26 | |||
| 1500 | $ 0.25 | |||
| 2500 | $ 0.24 | |||
| 3500 | $ 0.23 | |||
| 5000 | $ 0.22 | |||
| 12500 | $ 0.21 | |||
| 25000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
XZFBB79 Series
Blue 470nm LED Indication - Discrete 3.3V 1507 (3718 Metric)
