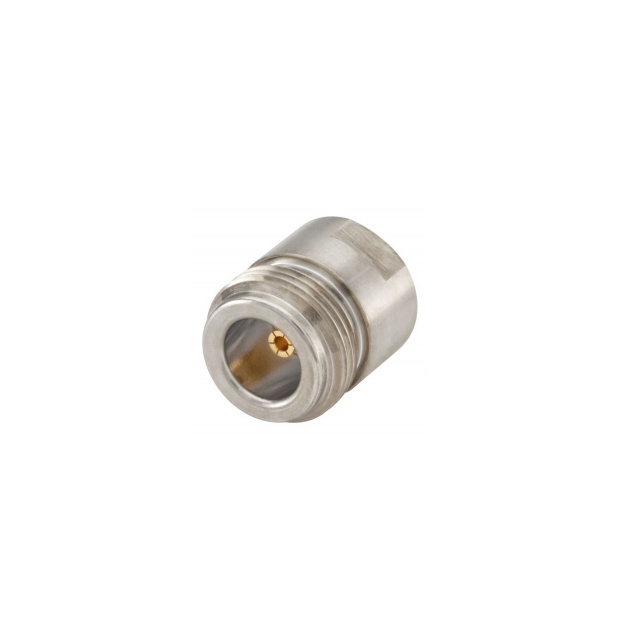

53K1RR-001N3

Active

Rosenberger

N TYPE TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

N TYPE TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	53K1RR-001N3

Body Finish	White Bronze
Body Material	Brass
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Material	Body Finish	Connector Type	Mounting Type	Frequency - Max [Max]	Dielectric Material	Contact Finish	Impedance	Connector Style	Contact Material
Rosenberger 53K1RR-001N3	Brass	White Bronze	Female Socket Jack	Cap Free Hanging	4 GHz	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	N Type	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 24.45

General part information

Terminator Coax Connector Jack, Female Socket N Type 50 Ohms
