SE5003L-EK1

Active

Skyworks Solutions Inc.

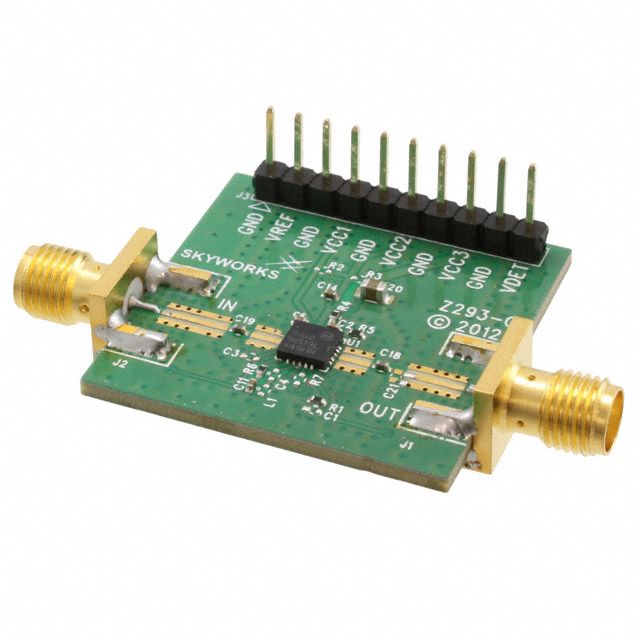

EVAL KIT FOR SE5003L

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVAL KIT FOR SE5003L

Technical Specifications

Parameters and characteristics for this part

Specification	SE5003L-EK1

For Use With/Related Products	SE5003L
Frequency	5 GHz
Supplied Contents	Board(s)
Type	Detector, Power Amplifier

Part	Package / Case	RF Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	P1dB	Current - Supply	Gain	Frequency [Min]	Frequency [Max]	Test Frequency [Max]	Test Frequency [Min]	Type	For Use With/Related Products	Supplied Contents	Frequency
Skyworks Solutions Inc. SE5003L1-R	20-VFQFN Exposed Pad	802.11ac	Surface Mount	5.5 V	3 V	20-QFN (4x4)	32 dBm	300 mA	35 dBi	5.15 GHz	5.9 GHz	5.9 GHz	5.15 GHz
Skyworks Solutions Inc. SE5003L-EK1														Detector Power Amplifier	SE5003L	Board(s)	5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.51

General part information

- SE5003L Power Amplifier, Detector 5GHz Evaluation Board
