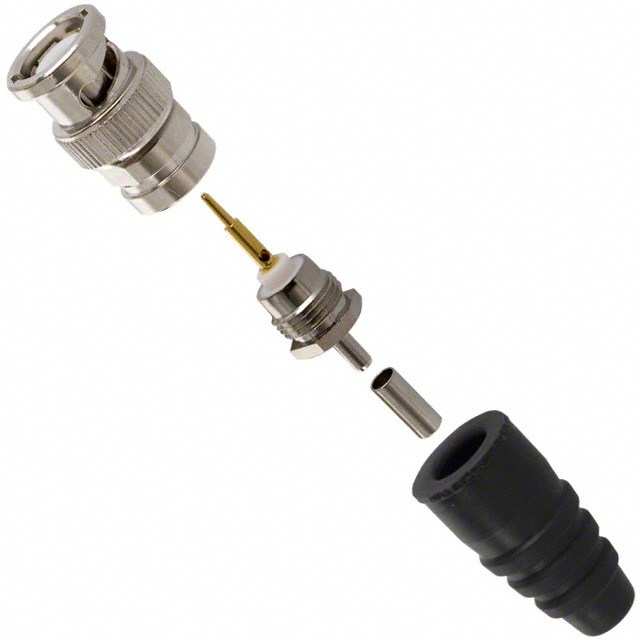

31-371

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-371

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	Clamp, Ferrule, Connector, Strain Relief
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Type	Connector Style	Fastening Type	Connector Type	Contact Termination	Includes	Number of Ports	Cable Group	Frequency - Max [Max]	Center Contact Plating	Body Finish	Center Contact Material	Insertion Loss	Voltage Rating	Impedance	Dielectric Material	Housing Color	Mating Cycles	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material
Amphenol RF 31-371	Free Hanging (In-Line)	BNC	Bayonet Lock	Male Pin Plug	Solder	Clamp Connector Ferrule Strain Relief	1	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 GHz	Gold	Nickel	Brass	0.2 dB	500 V	50 Ohms	Polytetrafluoroethylene (PTFE)	Silver	500	Crimp	-65 ░C	165 °C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
