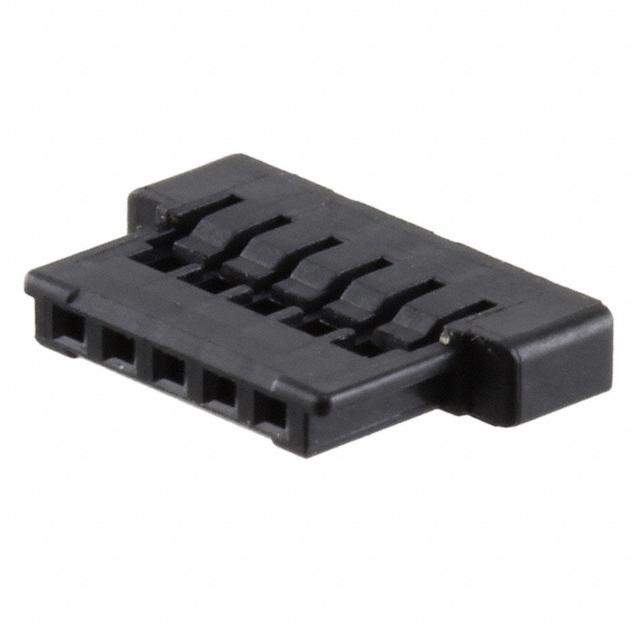

FI-S5S

Active

JAE Electronics

CONN PLUG HSG 5POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 5POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S5S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Shrouding	Number of Positions Loaded	Insulation Height	Insulation Height	Style	Mounting Type	Fastening Type	Connector Type	Contact Shape	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Voltage Rating	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Color	Insulation Material	Note
JAE Electronics FI-S5P-HFE-E1500	Copper Alloy	1.25 mm	0.049 in	Beige	Shrouded - 4 Wall	All	1.8 mm	0.071 "	Board to Cable/Wire	Surface Mount Right Angle	Friction Lock	Receptacle	Square	Solder Retention	Solder	-40 °C	80 C	1 A	1	UL94 V-0	Tin or Tin-Alloy	Gold	200 V	Male Pin
JAE Electronics FI-S5S										Free Hanging (In-Line)	Friction Lock	Plug							1					Female Socket	Crimp	0.049 in	1.25 mm	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Plug Black 0.049" (1.25mm)
