General part information
Electrical Enclosures IP68/NEMA 6P Plastic Enclosure, Flanges and Clear Cover (4.5 X 2.6 X 2.1 In)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | PUX-16532 | PU Series |
|---|---|---|
| Area (L x W) | - | 11.8 - 22.7 in² |
| Area (L x W) | - | 76 - 147 cm² |
| Color | - | Gray |
| Container Type | - | Enclosure |
| Design | - | Cover Included |
| For Use With/Related Products | PU Series | PU Series |
| Height | - | 2.44 in |
| Height | - | 52.07 - 61.98 mm |
| Height | - | 2.05 in |
| Material | Metal, Aluminum | Plastic, Polycarbonate, Metal, Aluminum |
| Material Flammability Rating | - | UL94 V-0 |
| Ratings | - | 4X, 12, NEMA 1, IP68, 6P, 13, 6, 4, 2 |
| Size / Dimension [x] | 2.6 in | 2.6 - 5.5 in |
| Size / Dimension [x] | 66.04 mm | 66.04 - 139.7 mm |
| Size / Dimension [y] | 66.04 mm | 66.04 - 104.9 mm |
| Size / Dimension [y] | 2.6 " | 2.6 - 4.13 in |
| Size / Dimension [z] | 0.06 " | 0.06 " |
| Size / Dimension [z] | 1.52 mm | 1.52 mm |
| Thickness | - | 0.12 in |
| Thickness | - | 3.05 mm |
| Type | Panel, Inner | Panel, Inner |
Electrical Enclosures IP68/NEMA 6P Plastic Enclosure, Flanges and Clear Cover (4.5 X 2.6 X 2.1 In)
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Thickness | Thickness | Ratings | Design | Material | Height [z] | Height [z] | Area (L x W) | Area (L x W) | Material Flammability Rating | Container Type | Color | Size / Dimension [z] | Size / Dimension [z] | For Use With/Related Products | Type | Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BUD INDUSTRIES PU-16536 | 104.9 mm | 4.13 in | 5.5 in | 139.7 mm | 0.12 in | 3.05 mm | 12, 13, 2, 4, 4X, 6, 6P, IP68, NEMA 1 | Cover Included | Plastic, Polycarbonate | 2.44 in | 61.98 mm | 22.7 in² | 147 cm² | UL94 V-0 | Enclosure | Gray | |||||

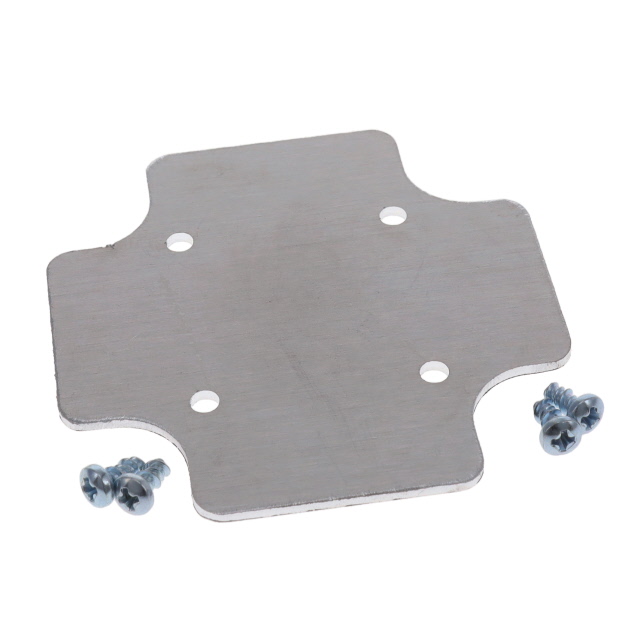

BUD INDUSTRIES PUX-16532 | 66.04 mm | 2.6 " | 2.6 in | 66.04 mm | Aluminum, Metal | 0.06 " | 1.52 mm | PU Series | Panel, Inner | ||||||||||||
BUD INDUSTRIES PU-16533-C | 66.8 mm | 2.63 in | 4.5 in | 114.3 mm | 0.12 in | 3.05 mm | 12, 13, 2, 4, 4X, 6, 6P, IP68, NEMA 1 | Cover Included | Plastic, Polycarbonate | 52.07 mm | 11.8 in² | 76 cm² | UL94 V-0 | Enclosure | Gray | 2.05 in |
