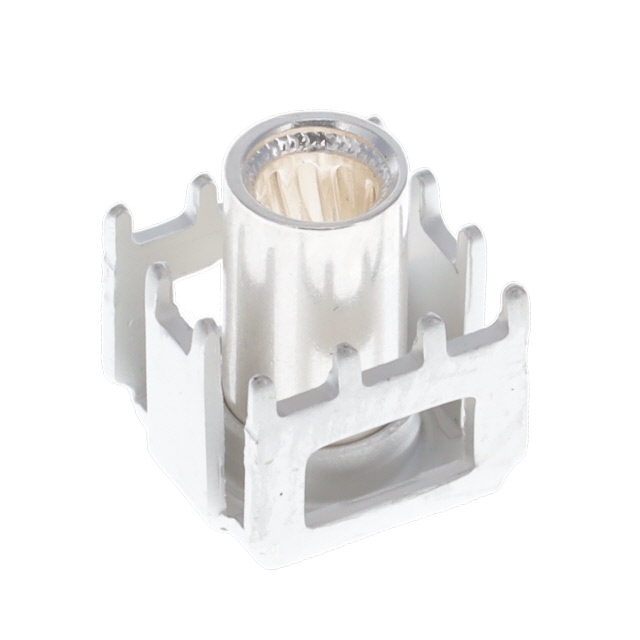

WTB024SV046110R
ActiveAmphenol Industrial Operations
WIRE TO BOARD, 2.4MM, SOCKET, VE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WTB024SV046110R
ActiveAmphenol Industrial Operations
WIRE TO BOARD, 2.4MM, SOCKET, VE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WTB024SV046110R | WTB02 Series |
|---|---|---|
| Color | - | Black |
| Terminal Type | Female, Receptacle (Socket) | Female, Receptacle (Socket), Pin (Plug), Male |
| Termination | Solder | Solder, Crimp |
| Wire Gauge [Max] | 14 AWG | 14 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.64 | |
| 10 | $ 3.30 | |||
| 25 | $ 3.13 | |||
| 50 | $ 3.05 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.55 | |||
| Digi-Reel® | 1 | $ 3.64 | ||
| 10 | $ 3.30 | |||
| 25 | $ 3.13 | |||
| 50 | $ 3.05 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.55 | |||
| Tape & Reel (TR) | 600 | $ 1.33 | ||
WTB02 Series
WIRE TO BOARD, 2.4MM, SOCKET, VE
| Part | Termination | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Color |
|---|---|---|---|---|---|
Amphenol Industrial Operations WTB024SV046110 | Solder | Female, Receptacle (Socket) | |||
Amphenol Industrial Operations WTB024SV046110R | Solder | Female, Receptacle (Socket) | 14 AWG | 12 AWG | |
Amphenol Industrial Operations WTB024PR135000 | Crimp | Male, Pin (Plug) | 14 AWG | 12 AWG | Black |
Description
General part information
WTB02 Series
Terminal Female, Receptacle (Socket) Connector Solder 12-14 AWG
