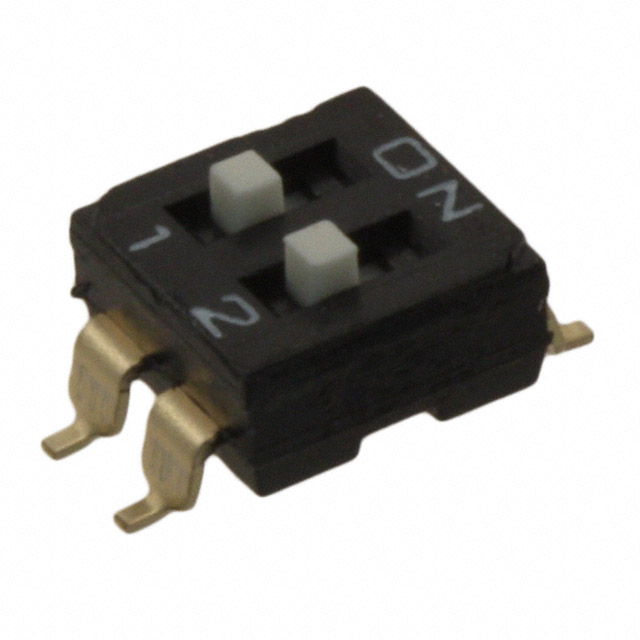

A6S-2104-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Termination Style	Length [x]	Length [x]	Washable	Current Rating (Amps)	Height Above Board	Height Above Board	Mechanical Life	Voltage Rating	Actuator Level	Actuator Type	Electrical Life	Contact Finish	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Pitch [x]	Pitch	Pitch [x]
Omron Electronics Inc-EMC Div A6S-2104-H(VNM)	Gull Wing	0.237 "	6.02 mm		25 mA	4.4 mm	0.173 in	1000 Cycles	24 VDC	Raised	Slide (Standard)	1000 Cycles	Gold	SPST	-20 C	70 °C	Surface Mount	2	0.1 in	Full	2.54 mm
