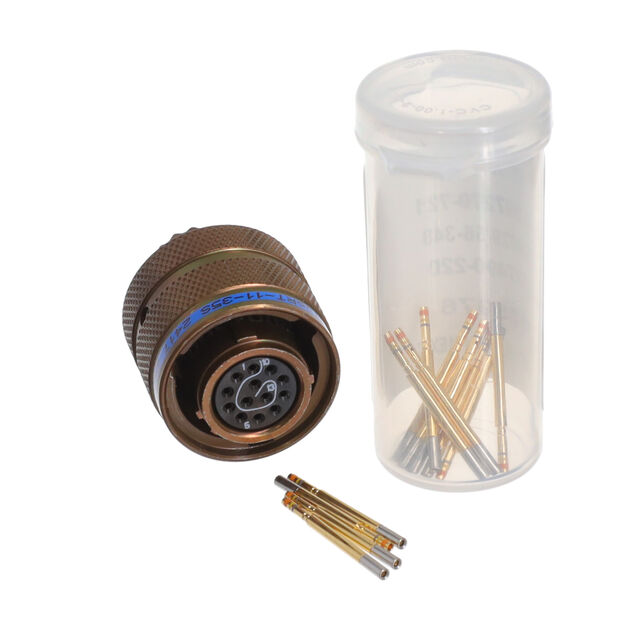

Specification	LJT06RT-11-35S-014

Applications	Military, Aviation, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Olive Drab Cadmium, Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	11
Shielding	Shielded
Termination	Crimp

LJT06RT11 Series

Part	Termination	Ingress Protection	Connector Type	Shielding	Shell Finish	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Primary Material	Fastening Type	Contact Finish Thickness - Mating	Shell Material	Contact Material	Features	Shell Size - Insert Width	Shell Size - Insert Length	Applications	Color	Orientation	Contact Finish - Mating	Qualification	Number of Positions	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)
Amphenol Aerospace Operations LJT06RT-11-5P-014	Crimp	Environment Resistant	Male Pins Plug	Shielded	Nickel Olive Drab Cadmium	-65 °C	175 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut	5 mm	11 mm	Aviation Marine Military	Olive Drab	N (Normal)	Gold	MIL-DTL-38999 Series I	5
Amphenol Aerospace Operations LJT06RT-11-35SB	Crimp	Environment Resistant	Female Sockets Plug	Shielded		-65 °C	175 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut			Aviation Marine Military		B	Gold	MIL-DTL-38999 Series I	13	11	35
Amphenol Aerospace Operations LJT06RT-11-35S	Crimp	Environment Resistant	Female Sockets Plug	Shielded		-65 °C	175 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut			Aviation Marine Military		N (Normal)	Gold	MIL-DTL-38999 Series I	13	11	35
Amphenol Aerospace Operations LJT06RT11-35P-014	Crimp	Environment Resistant	Male Pins Plug	Shielded	Nickel Olive Drab Cadmium	-65 °C	175 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut			Aviation Marine Military	Olive Drab	N (Normal)	Gold	MIL-DTL-38999 Series I	13	11	35
Amphenol Aerospace Operations LJT06RT-11-4S-023	Crimp	Environment Resistant	Female Sockets Plug	Shielded	Electroless Nickel	-65 °C	200 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut	4 mm	11 mm	Aviation Marine Military	Silver	N (Normal)	Gold	MIL-DTL-38999 Series I	4
Amphenol Aerospace Operations LJT06RT-11-35S-014	Crimp	Environment Resistant	Female Sockets Plug	Shielded	Nickel Olive Drab Cadmium	-65 °C	175 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut			Aviation Marine Military	Olive Drab	N (Normal)	Gold	MIL-DTL-38999 Series I	13	11	35
Amphenol Aerospace Operations LJT06RT-11-99S	Crimp	Environment Resistant	Female Sockets Plug	Shielded		-65 °C	175 °C	Free Hanging (In-Line)	Metal	Bayonet Lock	50 µin	Aluminum Alloy	Copper Alloy	Coupling Nut			Aviation Marine Military		N (Normal)	Gold	MIL-DTL-38999 Series I	7	11	99
