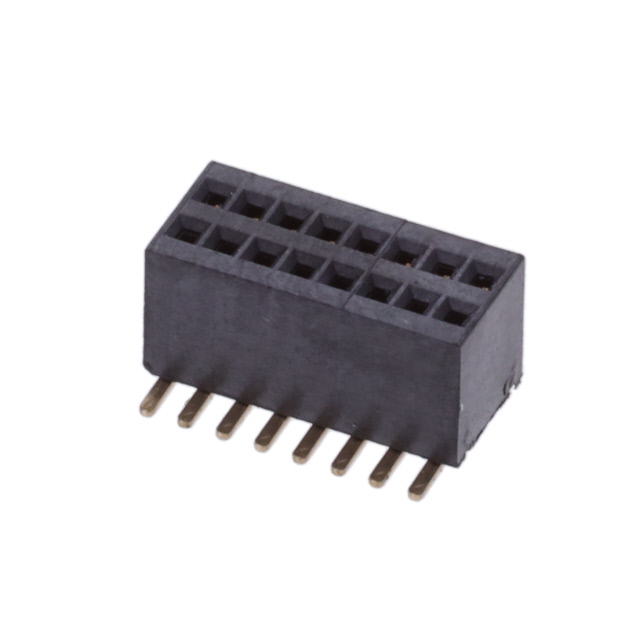

SRS2Y-16-U-SMT

Active

Adam Tech

CONN RCPT 16POS 0.031" GOLD SMD

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT 16POS 0.031" GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SRS2Y-16-U-SMT

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating	1.2 mm
Row Spacing - Mating	0.047 in
Style	Board to Cable/Wire
Termination	Solder

Part	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Type	Features	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Mounting Type	Number of Positions Loaded	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Contact Material	Termination	Connector Type	Number of Positions
Adam Tech SRS2Y-12-U-SMT	Board to Cable/Wire	-40 °C	105 ░C	Black	1.2 mm	0.047 in	12	Female Socket	Board Guide	Flash	Square	Thermoplastic	Flash	0.13 in	3.3 mm	0.031 in	0.8 mm	Gold	Push-Pull	Surface Mount	All	Gold	2	UL94 V-0	Phosphor Bronze	Solder	Receptacle
Adam Tech SRS2Y-10-U-SMT	Board to Cable/Wire	-40 °C	105 ░C	Black	1.2 mm	0.047 in	10	Female Socket	Board Guide	Flash	Square	Thermoplastic	Flash	0.13 in	3.3 mm	0.031 in	0.8 mm	Gold	Push-Pull	Surface Mount	All	Gold	2	UL94 V-0	Phosphor Bronze	Solder	Receptacle
Adam Tech SRS2Y-16-U-SMT	Board to Cable/Wire	-40 °C	105 ░C	Black	1.2 mm	0.047 in		Female Socket	Board Guide	Flash	Square	Thermoplastic	Flash	0.13 in	3.3 mm	0.031 in	0.8 mm	Gold	Push-Pull	Surface Mount	All	Gold	2	UL94 V-0	Phosphor Bronze	Solder	Receptacle	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold
