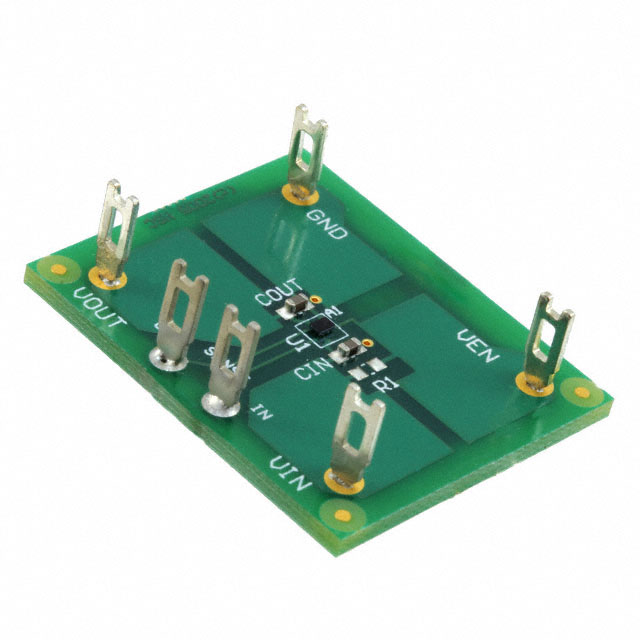

Specification	LP3991TL-1.8EV

Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output	300 mA
Regulator Type	Positive Fixed
Supplied Contents	Board(s)
Utilized IC / Part	LP3991
Voltage - Input (Maximum)	4 V
Voltage - Input (Minimum)	1.65 V
Voltage - Output	1.8 V

LP3991 Series

Part	PSRR	Package Width	Package Name	Package Length	Current - Supply (Max)	Protection Features	Voltage Dropout (Max)	Voltage - Input (Max)	Current - Quiescent (Iq)	Control Features	Number of Regulators	Current - Output	Output Configuration	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Package / Case	Voltage - Output (Min/Fixed)	Output Type	Board Type	Supplied Contents	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Utilized IC / Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Output	Regulator Type	Contents
Texas Instruments LP3991TL-1.8/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	1.8 V	Fixed
Texas Instruments LP3991TL-1.2EV												300 mA								Fully Populated	Board(s)	1	Single	1	LP3991	1.65 V	4 V	1.2 V	Positive Fixed	Board
Texas Instruments LP3991TL-1.2/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	1.2 V	Fixed
Texas Instruments LP3991TLX-1.2/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	1.2 V	Fixed
Texas Instruments LP3991TL-1.55/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	1.55 V	Fixed
Texas Instruments LP3991TLX-1.7/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	1.7 V	Fixed
Texas Instruments LP3991TL-2.8/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	2.8 V	Fixed
Texas Instruments LP3991TLX-2.0/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	2 V	Fixed
Texas Instruments LP3991TLX-0.8/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	0.8 V	Fixed
Texas Instruments LP3991TLX-1.7/NOPB	65 dB	1 mm	4-DSBGA	1 mm	225 µA	Over Temperature Short Circuit	0.16 V	4 V	100 µA	Enable	1	300 mA	Positive	-40 °C	85 °C	Surface Mount	4-WFBGA DSBGA	1.7 V	Fixed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LP3991TL-1.8EV | Datasheet
