SMTYF12A

Obsolete

STMicroelectronics

TVS DIODE 12VWM 22.9VC SMA

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TVS DIODE 12VWM 22.9VC SMA

Technical Specifications

Parameters and characteristics for this part

Specification	SMTYF12A

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	157 A
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C

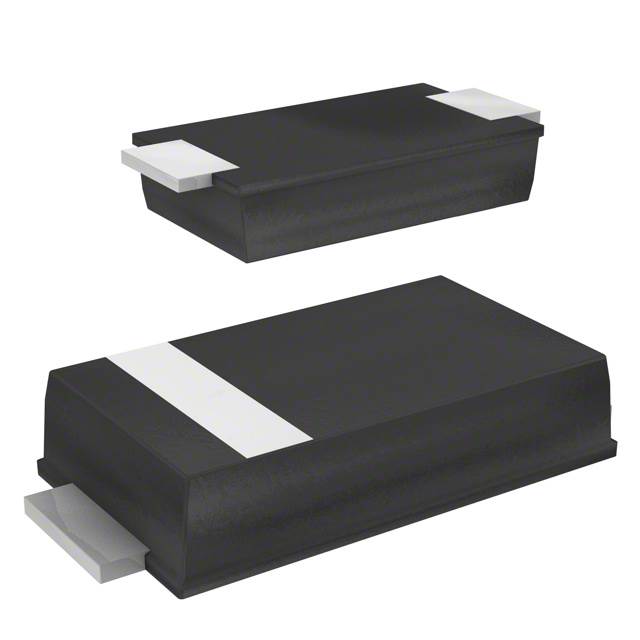

Package / Case	SMA Flat Leads, DO-221AC
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	SMA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	13.2 V
Voltage - Reverse Standoff (Typ)	12 V

Part	Mounting Type	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Package / Case	Supplier Device Package	Power - Peak Pulse	Type	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Applications	Operating Temperature [Min]	Operating Temperature [Max]
STMicroelectronics SMTY5.0A	Surface Mount	6.4 V	9 V	1	DO-214AC SMA	DO-214AC (SMA)	600 W	Zener	5 V	43.5 A	General Purpose
STMicroelectronics SMTYF12A	Surface Mount	13.2 V		1	DO-221AC SMA Flat Leads	SMA	600 W	Zener	12 V	157 A	General Purpose	-40 C	175 °C
STMicroelectronics SMTY18AM	Surface Mount		20 V	1	DO-216AA	DO-216AA	400 W	Zener	16 V		General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22.9V Clamp 157A (8/20µs) Ipp Tvs Diode Surface Mount SMA
