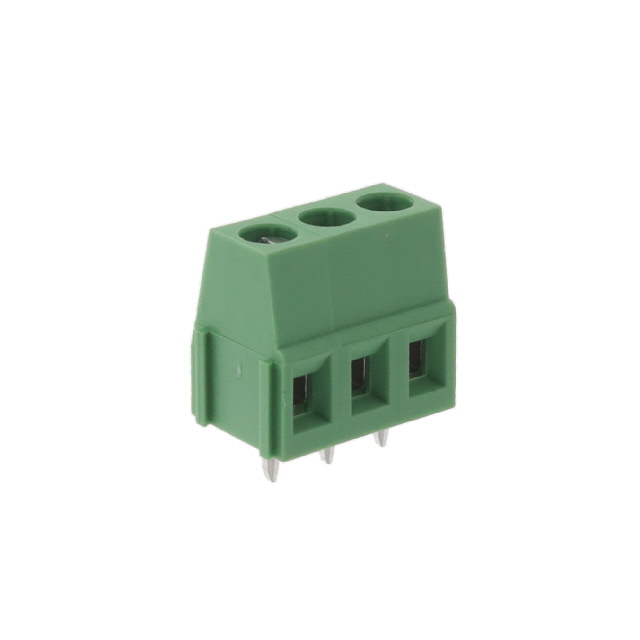

EBAC-03-C

Active

Adam Tech

EURO BLOCK 3P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 3P

Technical Specifications

Parameters and characteristics for this part

Specification	EBAC-03-C

Clamp Material - Plating	Brass - Nickel Plated
Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	10 A
Features	Interlocking (Side)
Housing Material	Thermoplastic
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.5
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Screw Thread	Clamp Material - Plating	Number of Levels	Positions Per Level	Wire Termination	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Current	Screw Material - Plating	Contact Material - Plating [custom]	Mounting Type	Features	Mating Orientation	Color
Adam Tech EBAC-03-C	Thermoplastic	-40 °C	115 °C	300 V	M2.5	Brass - Nickel Plated	1	3	Screw - Rising Cage Clamp	0.4 Nm	3.5 Lb-In	5 mm	0.197 in	12 AWG	22 AWG	10 A	Steel Zinc Plated	Brass - Tin Plated	Through Hole	Interlocking (Side)	Horizontal with Board	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
