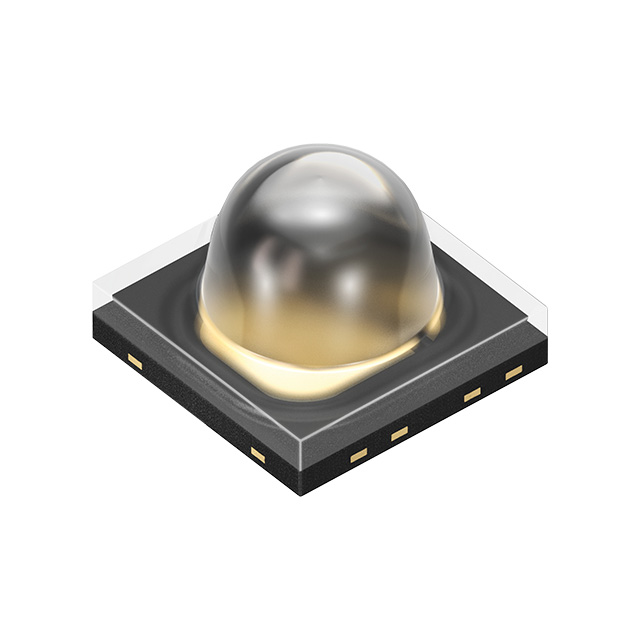

SFH 4717AS A01

ams-OSRAM USA INC.

EMITTER IR

Search across all available documentation for this part.

ams-OSRAM USA INC.

EMITTER IR

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 4717AS A01

Current - DC Forward (If) (Max) [Max]	1.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3838 Metric
Package / Case	1515
Radiant Intensity (Ie) Min @ If [Min]	630 mW/sr
Type	Infrared (IR)
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ)	3.5 V
Wavelength	860 nm

EMITTER IR

Part	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Type	Wavelength	Orientation	Mounting Type	Viewing Angle	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]
ams-OSRAM USA INC. SFH 4717AS A01	630 mW/sr	1.5 A	Infrared (IR)	860 nm	Top View	Surface Mount	50 °	3838 Metric	1515	3.5 V	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 3.5V 1.5A 630mW/sr @ 1A 50° 1515 (3838 Metric)
