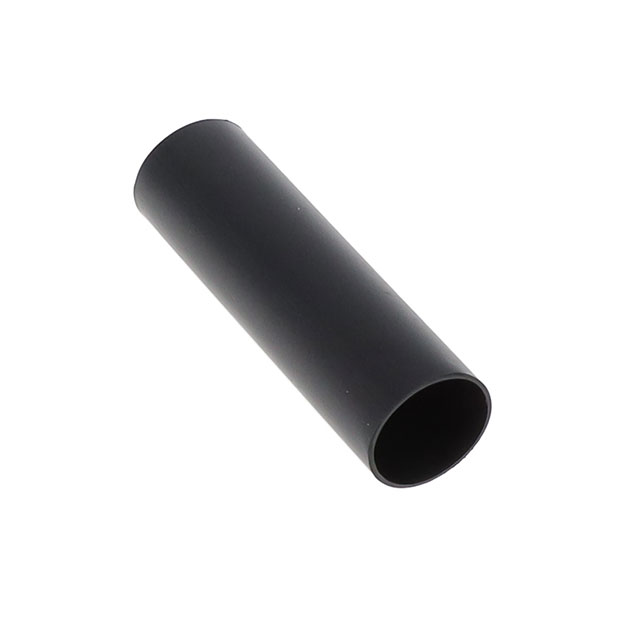

BATTU-12.7/6.1-A1-0-51MM
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 1/2" X 0.167' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
BATTU-12.7/6.1-A1-0-51MM
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 1/2" X 0.167' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BATTU-12.7/6.1-A1-0-51MM |
|---|---|
| Color | Black |
| Features | Adhesive Lined, Flame Retardant |
| Inner Diameter - Recovered [diameter] | 6.1 mm |
| Inner Diameter - Recovered [diameter] | 0.24 in |
| Inner Diameter - Supplied [diameter] | 12.7 mm |
| Inner Diameter - Supplied [diameter] | 0.5 in |
| Length [x] | 2.01 " |
| Length [x] | 0.167 ' |
| Length [x] | 51 mm |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Recovered Wall Thickness | 0.043 in |
| Recovered Wall Thickness | 1.09 mm |
| Shelf Life | 36 Months |
| Shrink Temperature | 110 °C |
| Shrinkage Ratio | 2 to 1 |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Tubing, Semi Rigid |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 5 | $ 0.34 | |||
| 10 | $ 0.26 | |||
| 20 | $ 0.25 | |||
| 50 | $ 0.24 | |||
Description
General part information
BATTU Series
Heat Shrink Tubing, Semi Rigid 0.500" (12.70mm) 2 to 1 Black 0.167' (51.00mm, 2.01")
Documents
Technical documentation and resources
