796637-2

Active

TE Connectivity AMP Connectors

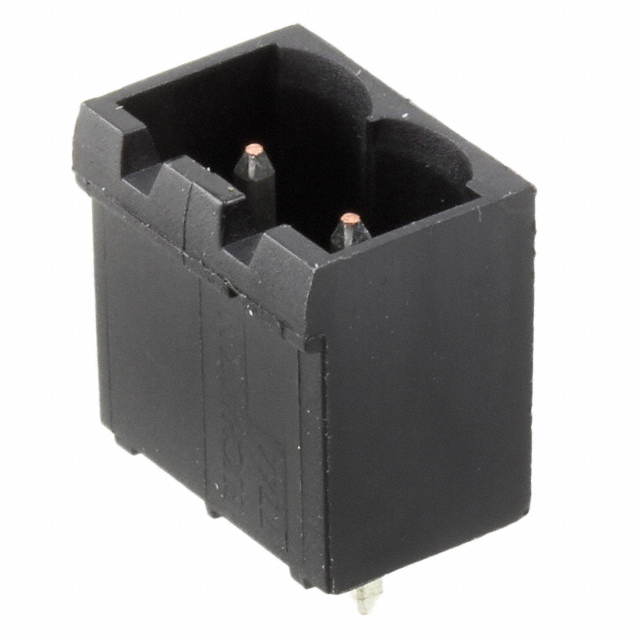

TERM BLOCK HDR 2POS VERT 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796637-2

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 2POS VERT 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796637-2	796637 Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	Vertical	Vertical
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2 - 23
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	2	2 - 23
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796637 Series

TERM BLOCK HDR 3POS VERT 5.08MM

Part	Material Flammability Rating	Mounting Type	Positions Per Level	Insulation Height	Insulation Height	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Tail Length	Contact Tail Length	Type	Pitch [x]	Pitch [x]	Contact Mating Finish	Voltage - UL	Number of Levels	Color	Header Orientation	Number of Positions
TE Connectivity AMP Connectors 796637-3	UL94 V-0	Through Hole	3	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical
TE Connectivity AMP Connectors 1-796637-3	UL94 V-0	Through Hole	13	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	13
TE Connectivity AMP Connectors 796637-8	UL94 V-0	Through Hole	8	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	8
TE Connectivity AMP Connectors 1-796637-1	UL94 V-0	Through Hole	11	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	11
TE Connectivity AMP Connectors 796637-2	UL94 V-0	Through Hole	2	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	2
TE Connectivity AMP Connectors 796637-5	UL94 V-0	Through Hole	5	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical
TE Connectivity AMP Connectors 1-796637-7	UL94 V-0	Through Hole	17	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical
TE Connectivity AMP Connectors 2-796637-2	UL94 V-0	Through Hole	22	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	22 positions
TE Connectivity AMP Connectors 796637-7	UL94 V-0	Through Hole	7	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	7
TE Connectivity AMP Connectors 1-796637-2	UL94 V-0	Through Hole	12	0.472 in	12 mm	Solder	-40 °C	110 °C	Copper Alloy	3.5 mm	0.138 in	Header, Male Pins, Shrouded (4 Side)	0.2 in	5.08 mm	Tin	300 V	1	Black	Vertical	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.74
		25	$ 0.74
		50	$ 0.71
		100	$ 0.60
		300	$ 0.56
		600	$ 0.53
		1200	$ 0.46
		5100	$ 0.40

Description

General part information

796637 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
