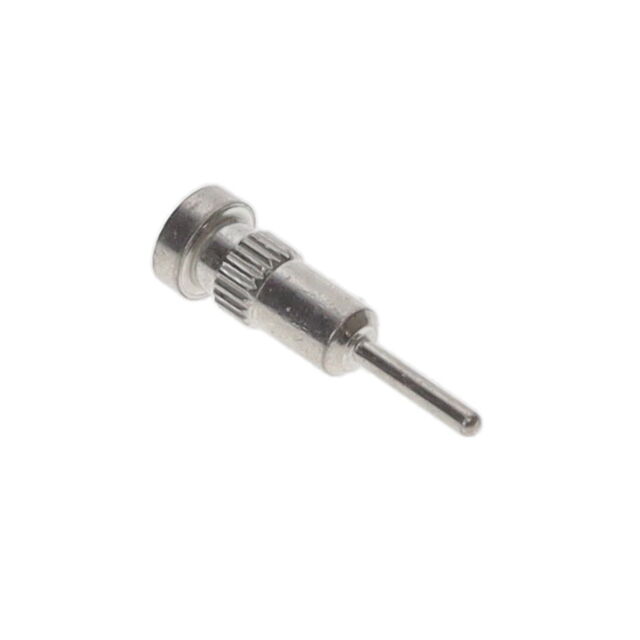

Specification	0297-0-15-01-06-27-04-0

Accepts Pin Diameter (Max)	0.032 in
Accepts Pin Diameter (Min)	0.022 in
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Beryllium Copper
Flange Diameter	0.085 in
Length - Overall	0.31 in
Mounting Hole Diameter	0.067 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pin Hole Diameter	0.051 in
Socket Depth	0.16 in
Tail Diameter	0.02 in
Tail Type	Standard Tail
Termination	Press-Fit, Knurled

0297-0 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Pin Hole Diameter	Flange Diameter	Socket Depth	Length - Overall	Termination	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Finish Thickness	Mounting Hole Diameter	Tail Type	Contact Finish	Contact Material	Tail Diameter
Mill-Max Manufacturing Corp. 0297-0-15-80-06-14-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	10 Ąin	0.067 in	Standard Tail	Gold	Beryllium Copper	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-80-06-80-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	200 µin	0.067 in	Standard Tail	Tin	Beryllium Copper	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-01-06-14-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	10 Ąin	0.067 in	Standard Tail	Gold	Beryllium Copper	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-15-06-14-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	10 Ąin	0.067 in	Standard Tail	Gold	Beryllium Copper	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-01-06-01-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	200 µin	0.067 in	Standard Tail	Tin-Lead	Beryllium Copper	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-01-06-27-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	30 µin	0.067 in	Standard Tail	Gold	Beryllium Copper	0.02 in
Mill-Max Manufacturing Corp. 0297-0-15-15-06-27-04-0	125 °C	-55 °C	0.051 in	0.085 in	0.16 in	0.31 in	Knurled Press-Fit	0.022 in	0.032 in	30 µin	0.067 in	Standard Tail	Gold	Beryllium Copper	0.02 in
