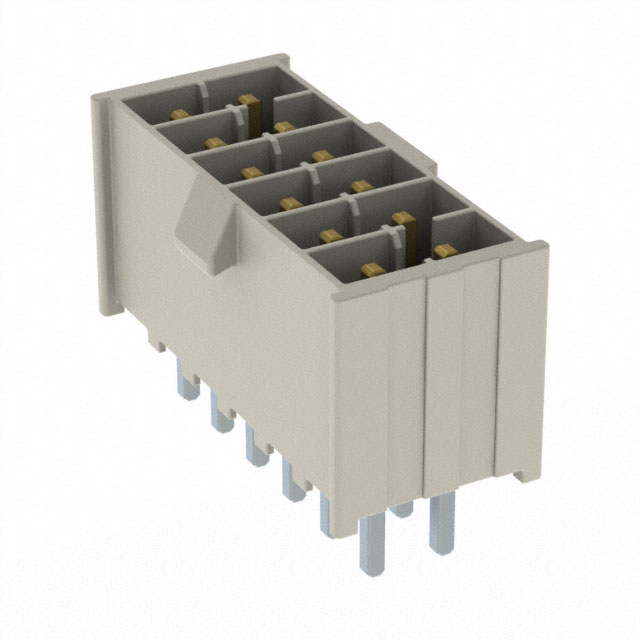

IPL1-106-01-L-D-K

Active

Samtec Inc.

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPL1 Datasheet IPL1 Series Other Related Documents 01 +2

IPL1-106-01-L-D-K

Active

Samtec Inc.

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

DocumentsIPL1 Datasheet IPL1 Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-106-01-L-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-106 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post	Insulation Material	Insulation Height	Insulation Height	Number of Rows	Style	Termination	Material Flammability Rating	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions Loaded	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
Samtec Inc. IPL1-106-01-F-D-RA-K	2.54 mm	0.1 in	675 VAC 954 VDC	5.46 mm	0.215 in	2.16 mm	0.085 in	Male Pin	12	3 µin	0.076 µm	Through Hole Right Angle	Tin	Liquid Crystal Polymer (LCP)	7.37 mm	0.29 in	2	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall
Samtec Inc. IPL1-106-01-L-D-K	2.54 mm	0.1 in	675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	12	10 çin	0.25 çm	Through Hole	Tin	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	2	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall	0.12 in	3.05 mm
Samtec Inc. IPL1-106-01-H-S-K			675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	6	30 Áin	0.76 Ám	Through Hole	Gold	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	1	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall	0.12 in	3.05 mm	3 µin	0.076 µm
Samtec Inc. IPL1-106-01-F-S-K			675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	6	3 µin	0.076 µm	Through Hole	Tin	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	1	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall	0.12 in	3.05 mm
Samtec Inc. IPL1-106-02-L-D-P	2.54 mm	0.1 in	675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	12	10 çin	0.25 çm	Surface Mount	Tin	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	2	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall
Samtec Inc. IPL1-106-02-L-S-K-TR			675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	6	10 çin	0.25 çm	Surface Mount	Tin	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	1	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall
Samtec Inc. IPL1-106-02-L-SH-K			675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	6	10 çin	0.25 çm	Surface Mount Right Angle	Tin	Liquid Crystal Polymer (LCP)	5.6 mm	0.22 in	1	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall					Board Guide
Samtec Inc. IPL1-106-01-S-D-RE1-K	2.54 mm	0.1 in	675 VAC 954 VDC	5.46 mm	0.215 in	2.16 mm	0.085 in	Male Pin	12	30 Áin	0.76 Ám	Through Hole Right Angle	Tin	Liquid Crystal Polymer (LCP)	8.25 mm	0.325 in	2	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall
Samtec Inc. IPL1-106-02-F-D-P	2.54 mm	0.1 in	675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	12	3 µin	0.076 µm	Surface Mount	Tin	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	2	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall
Samtec Inc. IPL1-106-02-H-S-K			675 VAC 954 VDC	5.46 mm	0.215 in			Male Pin	6	30 Áin	0.76 Ám	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	8.13 mm	0.32 in	1	Board to Cable/Wire	Solder	UL94 V-0	Gold	Phosphor Bronze	0.1 in	2.54 mm	Locking Ramp	Header	Square	-55 °C	125 °C	Natural	All	Shrouded - 4 Wall			3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.61
		100	$ 2.33
		250	$ 2.10
		500	$ 1.84
		1000	$ 1.68
		2500	$ 1.63
