A-DS 37 A/KG-T2S

Active

Assmann WSW Components

CONN D-SUB PLUG 37POS R/A SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 37POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-DS 37 A/KG-T2S

Backset Spacing	0.319 in
Backset Spacing	8.1 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Rows	Color	Termination	Contact Finish Thickness	Contact Finish	Contact Type	Features	Material Flammability Rating	Dielectric Material	Connector Style	Shell Size, Connector Layout	Number of Positions	Voltage Rating	Flange Feature	Current Rating (Amps)	Backset Spacing	Backset Spacing	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
Assmann WSW Components A-DS 37 A/KG-T2S	2	Black	Solder	Flash	Gold	Signal	Board Lock Grounding Indents	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	4 (DC C)	37	250 VDC	Female Screwlock (4-40) Mating Side	3 A	0.319 in	8.1 mm	Through Hole Right Angle	Male Pins Plug	105 ░C	-55 °C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

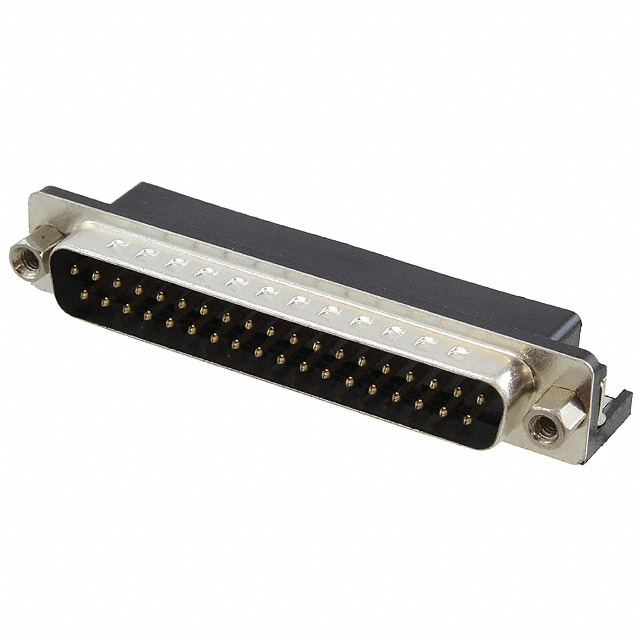

37 Position D-Sub Plug, Male Pins Connector
