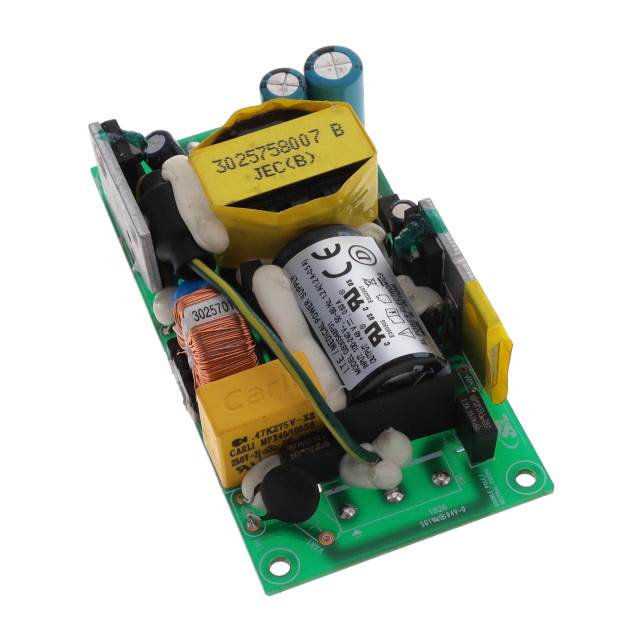

GB30S48P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 48V 30W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 48V 30W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 14.54

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

AC/DC POWER SUPPLY SINGLE-OUT 48V 0.63A 30W 7-PIN

Part	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Features	Voltage - Output 1	Type	Minimum Load Required	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Approval Agency	Mounting Type	Current - Output 1	Applications	Size / Dimension [y]	Size / Dimension [z]	Standard Number
SL POWER / Advanced Energy GB30S48K01	4000 V	101.6 mm	25.4 mm	1 "	4 in	48.26 mm	48.3 mm	1	Universal Input	48 V	Open Frame		240 VAC	100 VAC	30 W	-25 °C	70 °C	88 %	CE, cURus, UL	Chassis Mount	630 mA	ITE (Commercial), Medical
SL POWER / Advanced Energy GB30S48P01	4000 V	91.9 mm		0.82 in	3.62 in	1.89 in		1	Universal Input	48 V	Open Frame		264 VAC	90 VAC	30 W	-25 °C	70 °C	88 %	CE, cURus, DEMKO	Chassis Mount	630 mA	ITE (Commercial), Medical	48 mm	20.9 mm	60601-1, 62368-1
