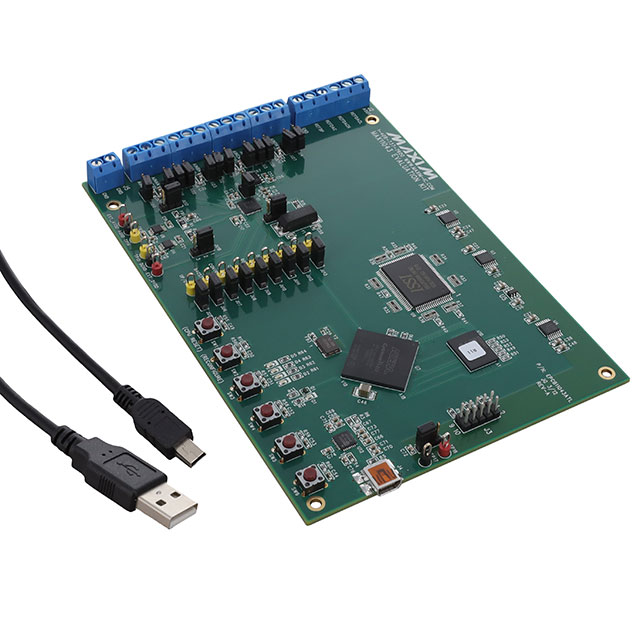

MAX11043ATLEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX11043
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11043ATLEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX11043
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11043ATLEVKIT# | MAX11043 Series |
|---|---|---|
| Data Interface | - | Serial, SPI |
| Function | ADC, DAC | ADC, DAC |
| Mounting Type | - | Surface Mount |
| Number of Channels | - | 8 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 40-WFQFN Exposed Pad |
| Resolution (Bits) | - | 16 b |
| Sampling Rate (Per Second) | - | 9.6 M |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 40-TQFN |
| Type | Data Acquisition | DAC, ADC, Data Acquisition |
| Utilized IC / Part | MAX11043 | MAX11043 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
| Voltage Supply Source | - | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 187.32 | |
MAX11043 Series
IC ADC/DAC 16BIT 9.6M 40TQFN
| Part | Package / Case | Resolution (Bits) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Supply Source | Voltage - Supply [Max] | Voltage - Supply [Min] | Data Interface | Type | Number of Channels | Mounting Type | Sampling Rate (Per Second) | Supplier Device Package | Function | Supplied Contents | Utilized IC / Part | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11043ATL+ | 40-WFQFN Exposed Pad | 16 b | 125 °C | -40 °C | Analog and Digital | 3.6 V | 3 V | Serial | ADC, DAC | 8 | Surface Mount | 9.6 M | 40-TQFN | ||||
Analog Devices Inc./Maxim Integrated MAX11043ATL/V+ | 40-WFQFN Exposed Pad | 16 b | 125 °C | -40 °C | Analog and Digital | 3.6 V | 3 V | SPI | ADC, DAC | 8 | Surface Mount | 40-TQFN | |||||
Analog Devices Inc./Maxim Integrated MAX11043ATLEVKIT# | Data Acquisition | ADC, DAC | Board(s) | MAX11043 | Graphical User Interface (GUI) | ||||||||||||
Analog Devices Inc./Maxim Integrated MAX11043ATL+T | 40-WFQFN Exposed Pad | 16 b | 125 °C | -40 °C | Analog and Digital | 3.6 V | 3 V | Serial | ADC, DAC | 8 | Surface Mount | 9.6 M | 40-TQFN |
Description
General part information
MAX11043 Series
MAX11043 ADC, DAC Data Acquisition Evaluation Board
