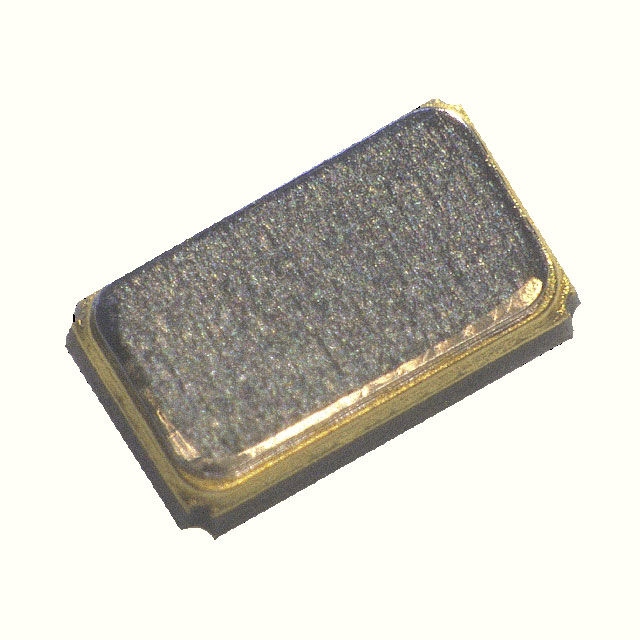

FC1610AN 32.7680KA-AG

Active

EPSON

CRYSTAL 32.768KHZ 7PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Configuration Guide

FC1610AN 32.7680KA-AG

Active

EPSON

CRYSTAL 32.768KHZ 7PF SMD

Deep-Dive with AI

DocumentsDatasheet Product Configuration Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.52
		10	$ 1.32
		50	$ 1.19
		100	$ 1.14
		500	$ 1.04
		1000	$ 1.02
		5000	$ 1.12

Description

General part information

FC1610AN Series

32.768 kHz ±20ppm Crystal 7pF 90 kOhms 2-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Product Configuration Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FC1610AN 32.7680KA-AG	FC1610AN Series

ESR (Equivalent Series Resistance)	90 kOhms	90 kOhms
Frequency	32.768 kHz	32.768 kHz
Frequency Tolerance	20 ppm	20 ppm
Height - Seated (Max) [Max] [z]	0.5 mm	0.5 mm
Height - Seated (Max) [Max] [z]	0.02 "	0.02 "
Load Capacitance	7 pF	6 - 7 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Size / Dimension [x]	1.65 mm, 0.065 in	0.065 - 1.65 mm
Size / Dimension [y]	0.041 in, 1.05 mm	0.041 - 1.05 in
Supplier Device Package	2-SMD	2-SMD
Supplier Device Package [x]	1.65	1.65
Supplier Device Package [y]	1.05	1.05
Type	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)

FC1610AN Series

FC1610AN 32.7680KA-AC5: KHZ XTAL

Part	Mounting Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Package / Case	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Size / Dimension [y]	Size / Dimension [x]	Load Capacitance	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Frequency Tolerance
EPSON FC1610AN 32.7680KA-AC5	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm
EPSON FC1610AN 32.7680K-70NN90KCB	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm	7 pF
EPSON FC1610AN 32.7680KA-A7	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm
EPSON FC1610AN 32.7680K-70NN90KC0	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm	7 pF
EPSON FC1610AN 32.7680K-60NN90KC0	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm	6 pF
EPSON FC1610AN 32.7680KA-AG	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm	7 pF	1.65	2-SMD	1.05	20 ppm
EPSON FC1610AN 32.7680KA-AC3	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm
EPSON FC1610AN 32.7680KA-A5	Surface Mount	90 kOhms	0.5 mm	0.02 "	kHz Crystal (Tuning Fork)	2-SMD, No Lead	Fundamental	85 °C	-40 °C	32.768 kHz	0.041 in, 1.05 mm	0.065 in, 1.65 mm
