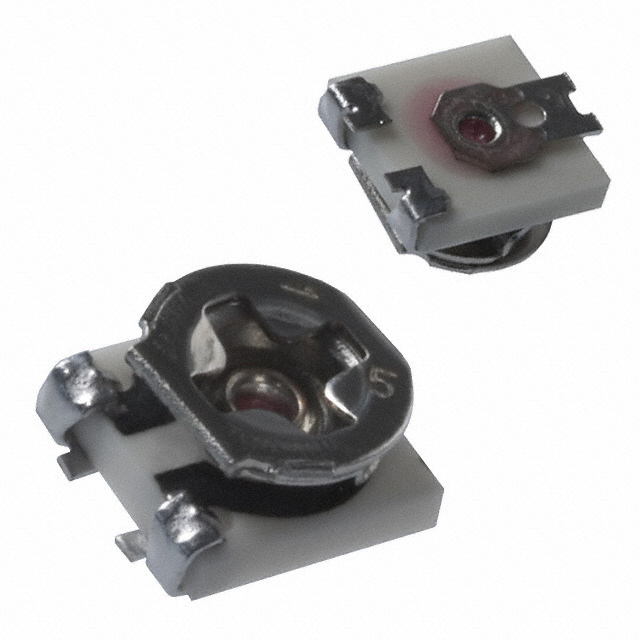

3303X-3-101E

Obsolete

Bourns Inc.

TRIMMER 100 OHM 0.15W J LEAD TOP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRIMMER 100 OHM 0.15W J LEAD TOP

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Tolerance	Number of Turns	Mounting Type	Resistance	Termination Style	Adjustment Type	Resistive Material	Temperature Coefficient
Bourns Inc. 3303X-3-202E	3.75 mm	3 mm	0.148 "	0.118 in	150 mW	25 %	1	Surface Mount	2 kOhms	J Lead	Top Adjustment	Cermet	250 ppm/°C
Bourns Inc. 3303X-3-501E	3.75 mm	3 mm	0.148 "	0.118 in	150 mW	25 %	1	Surface Mount	500 Ohms	J Lead	Top Adjustment	Cermet	250 ppm/°C
Bourns Inc. 3303X-3-104E	3.75 mm	3 mm	0.148 "	0.118 in	150 mW	25 %	1	Surface Mount	100 kOhms	J Lead	Top Adjustment	Cermet	250 ppm/°C
Bourns Inc. 3303X-3-503E	3.75 mm	3 mm	0.148 "	0.118 in	150 mW	25 %	1	Surface Mount	50 kOhms	J Lead	Top Adjustment	Cermet	250 ppm/°C
Bourns Inc. 3303X-3-101E	3.75 mm	3 mm	0.148 "	0.118 in	150 mW	25 %	1	Surface Mount	100 Ohms	J Lead	Top Adjustment	Cermet	250 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Ohms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment

Technical documentation and resources
