0501-0-15-15-30-27-04-0

Active

Mill-Max Manufacturing Corp.

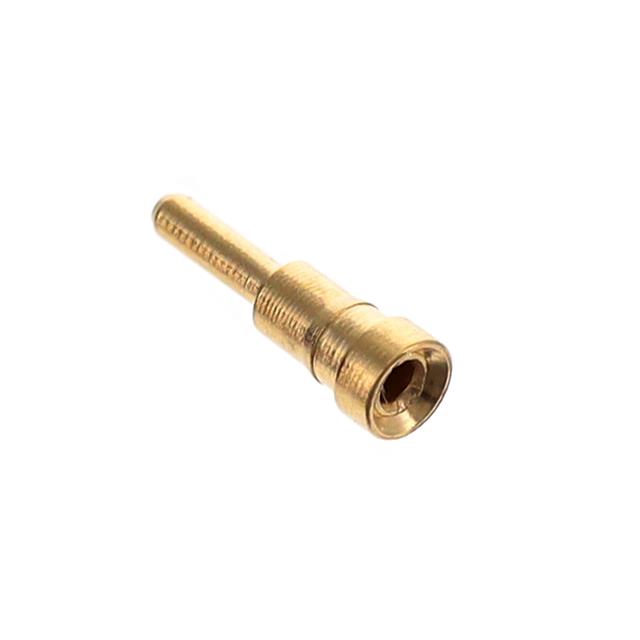

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0501-0-15-15-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0501-0-15-15-30-27-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.151 in
Socket Depth	3.84 mm
Tail Diameter	0.03 in
Tail Diameter	0.76 mm
Tail Type	Standard Tail
Termination	Press-Fit

0501-0 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter	Tail Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Contact Finish	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0501-0-15-01-30-27-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm	Gold	Standard Tail	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0501-0-15-01-30-02-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm	Tin-Lead	Standard Tail	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm	2.54 µm	100 µin
Mill-Max Manufacturing Corp. 0501-0-15-80-30-14-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm	Gold	Standard Tail	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0501-0-15-80-30-09-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm		Standard Tail	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0501-0-15-80-30-27-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm	Gold	Standard Tail	1.78 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0501-0-15-15-30-27-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm	Gold	Standard Tail	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0501-0-15-01-30-14-04-0	-55 °C	125 °C	0.03 in	0.76 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.151 in	3.84 mm	Gold	Standard Tail	1.77 mm	0.07 in	Beryllium Copper	Press-Fit	0.057 "	1.45 mm	0.25 Ám	10 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.34
		10	$ 1.13
		25	$ 1.09
		50	$ 1.06
		100	$ 1.02
		250	$ 0.92
		500	$ 0.83
		1000	$ 0.74
		3000	$ 0.67

Description

General part information

0501-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

No documents available
