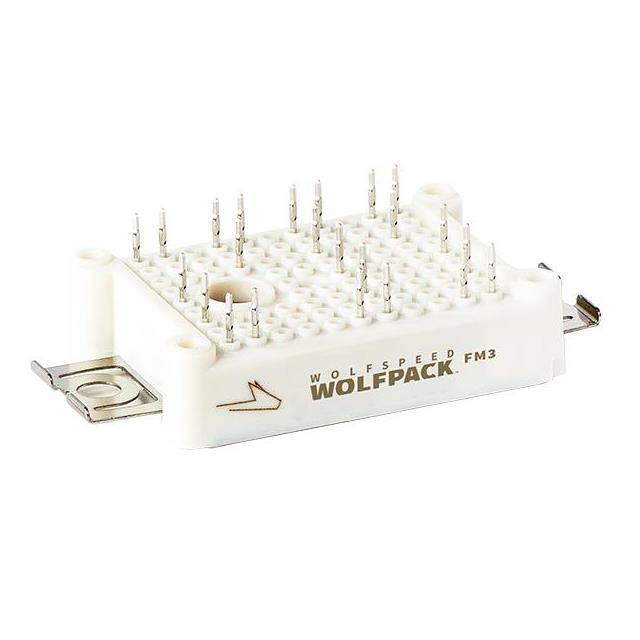

CCB032M12FM3

Active

Wolfspeed

SIC 6N-CH 1200V 40A MODULE

Search across all available documentation for this part.

Active

Wolfspeed

SIC 6N-CH 1200V 40A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	CCB032M12FM3

Configuration	6 N-Channel (3-Phase Bridge)
Current - Continuous Drain (Id) @ 25°C	40 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	118 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	3400 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rds On (Max) @ Id, Vgs	42.6 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

SIC 6N-CH 1200V 40A MODULE

Part	Package / Case	Technology	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Configuration
Wolfspeed CCB032M12FM3	Module	Silicon Carbide (SiC)	1200 V	1.2 kV	150 °C	-40 °C	Chassis Mount	40 A	42.6 mOhm	118 nC	3400 pF	3.6 V	6 N-Channel (3-Phase Bridge)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 1200V (1.2kV) 40A Chassis Mount
