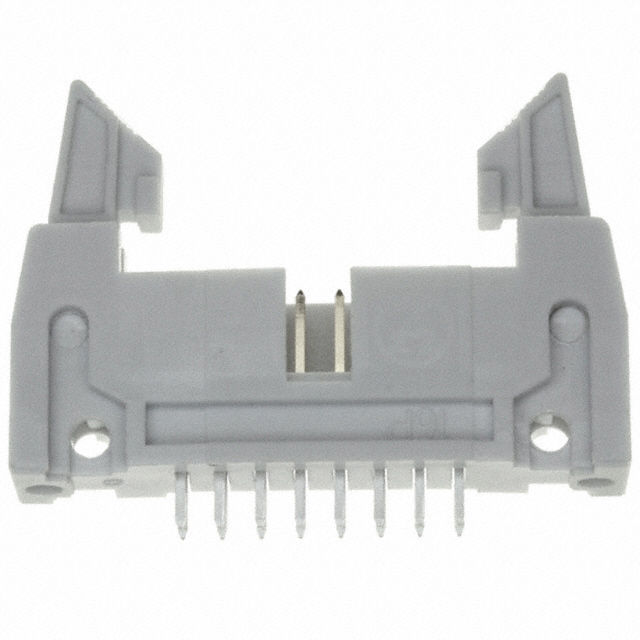

AWH 16G-0222-T

Active

Assmann WSW Components

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWH 16G-0222-T

Active

Assmann WSW Components

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWH 16G-0222-T

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Gray
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

AWH 16G Series

Part	Cable Termination	Features	Contact Type	Contact Finish	Number of Rows	Number of Positions	Connector Type	Color	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Wire Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Shrouding	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Fastening Type	Termination
Assmann WSW Components AWH16G-E202-IDC-R	IDC	Feed Through	Male Pin	Gold	2	16	Header	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	Ribbon Cable
Assmann WSW Components AWH 16G-0202-IDC	IDC	Feed Through Polarizing Key	Male Pin	Gold	2	16	Header	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	Ribbon Cable	Free Hanging (In-Line) Right Angle	0.025 µm	1 µin
Assmann WSW Components AWH16G-0232-T-R		Keying Slot	Male Pin		2	16	Header							Through Hole			Gray	Brass	0.1 in	2.54 mm	3 A	UL94 V-0	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	Shrouded - 4 Wall	17 mm	0.669 "	2.54 mm	0.1 in	Board to Cable/Wire	0.13 in	3.3 mm	Tin	Flash	-40 °C	105 ░C	Square	Latch Lock/Eject Hooks Long	Solder
Assmann WSW Components AWH 16G-0232-IDC	IDC	Feed Through	Male Pin	Gold	2	16	Header	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	Ribbon Cable	Free Hanging (In-Line)																									Latch Lock/Eject Hooks Long
Assmann WSW Components AWH16G-E222-IDC-R	IDC	Feed Through	Male Pin	Gold	2	16	Header	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	Ribbon Cable																										Latch Lock/Eject Hooks Short
Assmann WSW Components AWH16G-0202-IDC-R	IDC	Feed Through	Male Pin	Gold	2	16	Header	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	Ribbon Cable	Free Hanging (In-Line)
Assmann WSW Components AWH16G-0202-T-R		Keying Slot	Male Pin		2	16	Header							Through Hole			Gray	Brass	0.1 in	2.54 mm	3 A	UL94 V-0	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	Shrouded - 4 Wall	17 mm	0.669 "	2.54 mm	0.1 in	Board to Cable/Wire	0.13 in	3.3 mm	Tin	Flash	-40 °C	105 ░C	Square	Push-Pull	Solder
Assmann WSW Components AWH 16G-0222-T		Keying Slot	Male Pin		2	16	Header							Through Hole			Gray	Brass	0.1 in	2.54 mm	3 A	UL94 V-0	Gold	Polybutylene Terephthalate (PBT) Glass Filled	All	Shrouded - 4 Wall	17 mm	0.669 "	2.54 mm	0.1 in	Board to Cable/Wire	0.13 in	3.3 mm	Tin	Flash	-40 °C	105 ░C	Square	Latch Lock/Eject Hooks Short	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.35
		10	$ 1.14
		100	$ 1.02
		500	$ 0.84
		1000	$ 0.74
		4900	$ 0.65
		10000	$ 0.62

Description

General part information

AWH 16G Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
