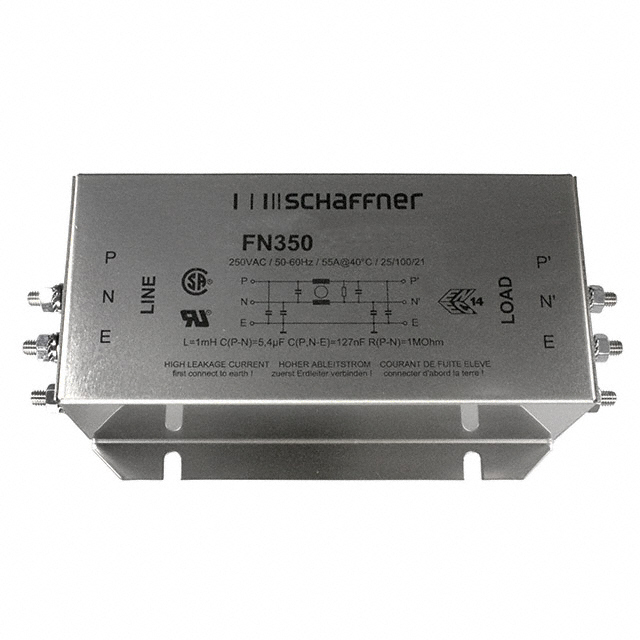

FN350-55-24

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 55A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 55A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	FN350-55-24

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	55 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	250 V

Part	Configuration	Filter Type	Termination Style	Voltage - Rated AC	Applications	Current	Operating Temperature [custom]	Frequency - Operating	Mounting Type	Approval Agency
TE Connectivity Raychem Cable Protection FN350-55-33	Single Stage	Single Phase	Terminal Block	250 V	Regenerative Motor Drive	55 A	-25 °C 100 °C	400 Hz	Chassis Mount	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN350-30-33	Single Stage	Single Phase	Terminal Block	250 V	Regenerative Motor Drive	30 A	-25 °C 100 °C	400 Hz	Chassis Mount	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN350-8-29	Single Stage	Single Phase	Terminal Block	250 V	Regenerative Motor Drive	8 A	-25 °C 100 °C	400 Hz	Chassis Mount	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN350-55-24	Single Stage	Single Phase	Terminal Block	250 V	General Purpose	55 A	-25 °C 100 °C	400 Hz	Chassis Mount	CSA ENEC UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 193.27

General part information

Single Phase EMC/EMI Line Filter 55 A 250V DC ~ 400Hz Single Stage Terminal Block
