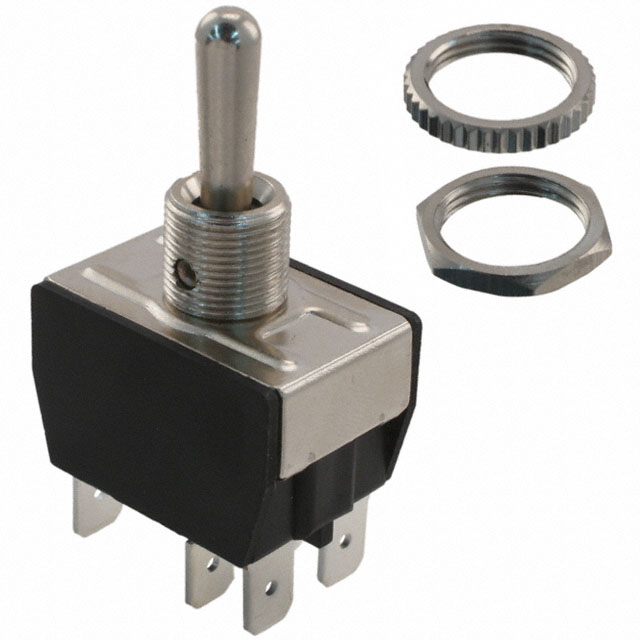

C3960BA
ActiveBULGIN LIMITED
SWITCH TOGGLE DPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3960BA
ActiveBULGIN LIMITED
SWITCH TOGGLE DPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3960BA |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | DPDT |
| Illumination | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 12.7 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.78 | |
| 10 | $ 13.62 | |||
| 25 | $ 12.84 | |||
| 50 | $ 12.28 | |||
| 100 | $ 11.74 | |||
| 250 | $ 11.07 | |||
| 500 | $ 10.58 | |||
Description
General part information
C3960 Series
Toggle Switch DPDT Panel Mount
